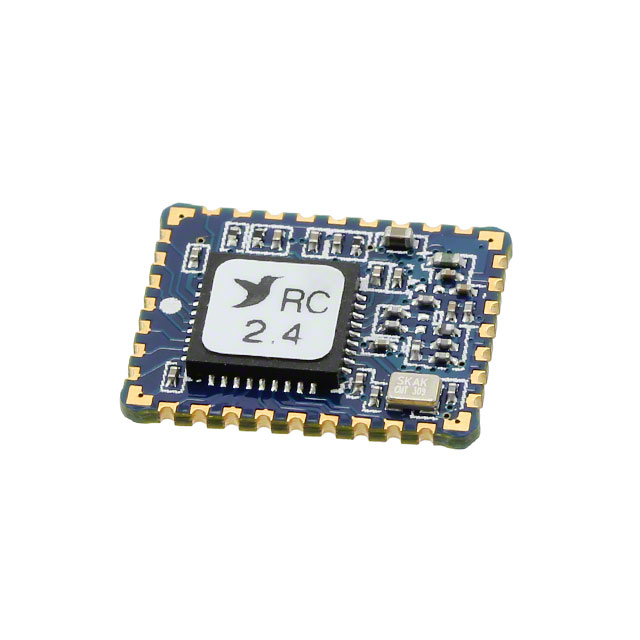

HUM-2.4-RC

Active

TE Connectivity Linx

RF TXRX MOD ISM>1GHZ CAST SMD

Search across all available documentation for this part.

Active

TE Connectivity Linx

RF TXRX MOD ISM>1GHZ CAST SMD

Technical Specifications

Parameters and characteristics for this part

Specification	HUM-2.4-RC

Antenna Type	Antenna Not Included, Castellation
Current - Receiving	25.5 mA
Current - Transmitting [Max]	28 mA
Current - Transmitting [Min]	19 mA
Frequency	2.4 GHz
Modulation	MSK, FHSS
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Output	1 dBm
RF Family/Standard	General ISM > 1GHz
Sensitivity	-99 dBm
Serial Interfaces	Parallel, UART
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2 V

Part	Antenna Type	Current - Receiving	RF Family/Standard	Current - Transmitting [Max]	Current - Transmitting [Min]	Modulation	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Serial Interfaces	Frequency	Sensitivity	Power - Output	Mounting Type
TE Connectivity Linx HUM-2.4-RC	Antenna Not Included Castellation	25.5 mA	General ISM > 1GHz	28 mA	19 mA	FHSS MSK	Module	85 °C	-40 °C	3.6 V	2 V	Parallel UART	2.4 GHz	-99 dBm	1 dBm	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General ISM > 1GHz Proprietary Transceiver Module 2.4GHz Antenna Not Included, Castellation Surface Mount
