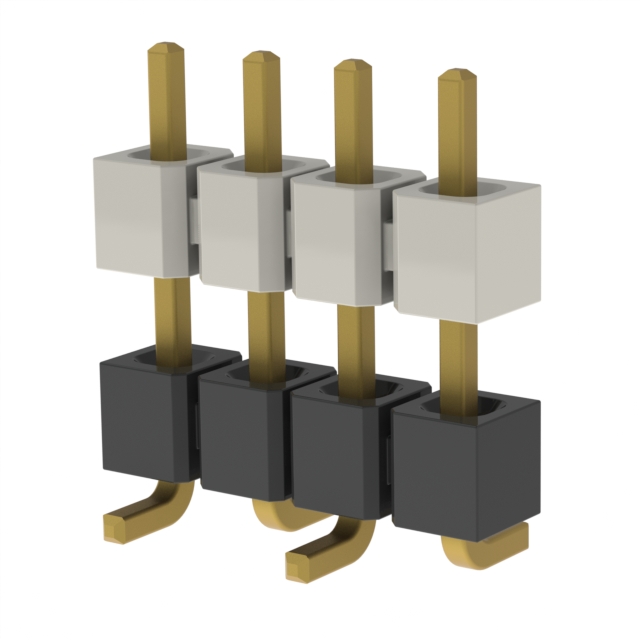

HW-04-08-G-S-361-SM

Active

Samtec Inc.

CONN BOARD STACKER HDR 4 POS 2.54MM SOLDER ST TOP ENTRY SMD LAYER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HW-04-08-G-S-361-SM

Active

Samtec Inc.

CONN BOARD STACKER HDR 4 POS 2.54MM SOLDER ST TOP ENTRY SMD LAYER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HW-04-08-G-S-361-SM

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin	11.811 mm
Length - Overall Pin	0.465 in
Length - Post (Mating) [x]	2.642 mm
Length - Post (Mating) [x]	0.104 in
Length - Stack Height [x]	0.361 in
Length - Stack Height [x]	9.169 mm
Mounting Type	Surface Mount
Number of Positions	4
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

HW-04-08 Series

Part	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Mounting Type	Number of Positions	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Termination	Number of Rows	Color	Length - Overall Pin	Length - Overall Pin	Contact Finish - Post (Mating)	Length - Stack Height [x]	Length - Stack Height [x]	Length - Tail [x]	Length - Tail [x]	Length - Stack Height [z]	Length - Stack Height [z]	Length - Tail	Length - Tail
Samtec Inc. HW-04-08-G-D-250-SM-A	0.25 Ám	10 Áin	0.1 in	2.54 mm	2.54 mm	0.1 in	Surface Mount	8	5.791 mm	0.215 in	Solder	2	Black	11.811 mm	0.465 in	Gold	0.25 in	6.35 mm
Samtec Inc. HW-04-08-F-D-250-SM	0.076 Ám	3 Áin	0.1 in	2.54 mm	2.54 mm	0.1 in	Surface Mount	8	5.791 mm	0.215 in	Solder	2	Black	11.811 mm	0.465 in	Gold	0.25 in	6.35 mm
Samtec Inc. HW-04-08-S-S-354-SM	0.76 µm	30 µin			2.54 mm	0.1 in	Surface Mount	4	2.819 mm	0.111 in	Solder	1	Black	11.811 mm	0.465 in	Gold	0.354 in	8.992 mm
Samtec Inc. HW-04-08-G-S-361-SM	0.25 Ám	10 Áin			2.54 mm	0.1 in	Surface Mount	4	2.642 mm	0.104 in	Solder	1	Black	11.811 mm	0.465 in	Gold	0.361 in	9.169 mm
Samtec Inc. HW-04-08-L-D-275-SM	0.25 Ám	10 Áin	0.1 in	2.54 mm	2.54 mm	0.1 in	Surface Mount	8	4.826 mm	0.19 in	Solder	2	Black	11.811 mm	0.465 in	Gold	0.275 in	6.985 mm
Samtec Inc. HW-04-08-G-S-260-090	0.25 Ám	10 Áin			2.54 mm	0.1 in	Through Hole	4	4.572 mm	0.18 in	Solder	1	Black	13.462 mm	0.53 in	Gold			2.286 mm	0.09 in	0.26 in	6.604 mm
Samtec Inc. HW-04-08-G-S-350-SM	0.25 Ám	10 Áin			2.54 mm	0.1 in	Surface Mount	4	2.921 mm	0.115 in	Solder	1	Black	11.811 mm	0.465 in	Gold	0.35 in	8.89 mm
Samtec Inc. HW-04-08-G-D-255-SM-A	0.25 Ám	10 Áin	0.1 in	2.54 mm	2.54 mm	0.1 in	Surface Mount	8	5.334 mm	0.21 in	Solder	2	Black	11.811 mm	0.465 in	Gold	0.255 in	6.477 mm
Samtec Inc. HW-04-08-T-D-300-SM			0.1 in	2.54 mm	2.54 mm	0.1 in	Surface Mount	8	4.191 mm	0.165 in	Solder	2	Black	11.811 mm	0.465 in	Tin	0.3 in	7.62 mm
Samtec Inc. HW-04-08-F-S-320-110	0.076 Ám	3 Áin			2.54 mm	0.1 in	Through Hole	4	2.54 mm	0.1 in	Solder	1	Black	13.462 mm	0.53 in	Gold					0.32 in	8.128 mm	2.8 mm	0.11 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 1.18
		50	$ 0.96
		100	$ 0.78
		500	$ 0.60
Digikey	Bulk	1	$ 1.25

Description

General part information

HW-04-08 Series

4 Position Header Spacer Connector 0.100" (2.54mm) Gold Surface Mount
