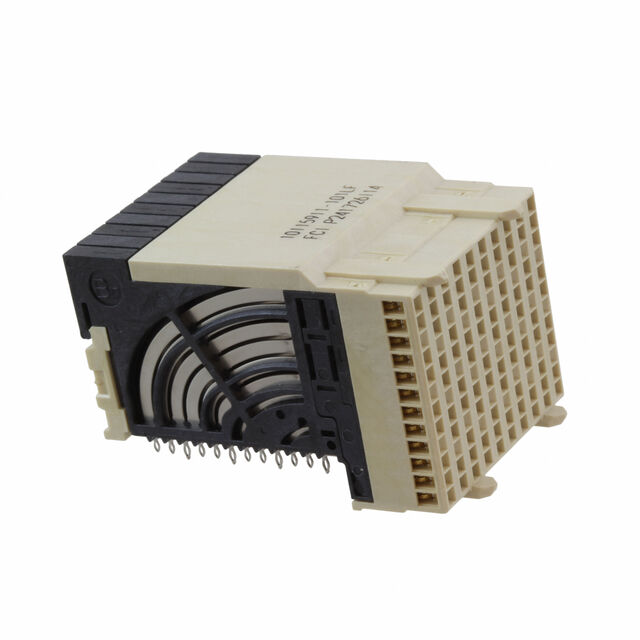

10115911-101LF

Active

Amphenol ICC (FCI)

CONN RCPT HIGH SPEED 54P EDGE MT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCPT HIGH SPEED 54P EDGE MT

Technical Specifications

Parameters and characteristics for this part

Specification	10115911-101LF

Color	Natural
Connector Style	High Speed
Connector Type	Receptacle, Female Sockets
Connector Usage	Daughtercard
Contact Finish	Gold
Current Rating (Amps)	500 mA
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	10
Number of Positions	120
Number of Positions Loaded	All
Number of Rows	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.055 in
Pitch [x]	1.4 mm
Termination	Press-Fit
Voltage Rating	50 VAC

Part	Material Flammability Rating	Current Rating (Amps)	Pitch [x]	Pitch [x]	Connector Type	Mounting Type	Number of Positions	Color	Number of Positions Loaded	Connector Usage	Number of Rows	Connector Style	Termination	Number of Columns	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish
Amphenol ICC (FCI) 10115911-101LF	UL94 V-0	500 mA	0.055 in	1.4 mm	Receptacle Female Sockets	Board Edge Right Angle Through Hole	120	Natural	All	Daughtercard	12	High Speed	Press-Fit	10	50 VAC	85 °C	-55 °C	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	232	$ 23.12

General part information

120 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Natural High Speed
