DC37-SD
ActiveAdam Tech

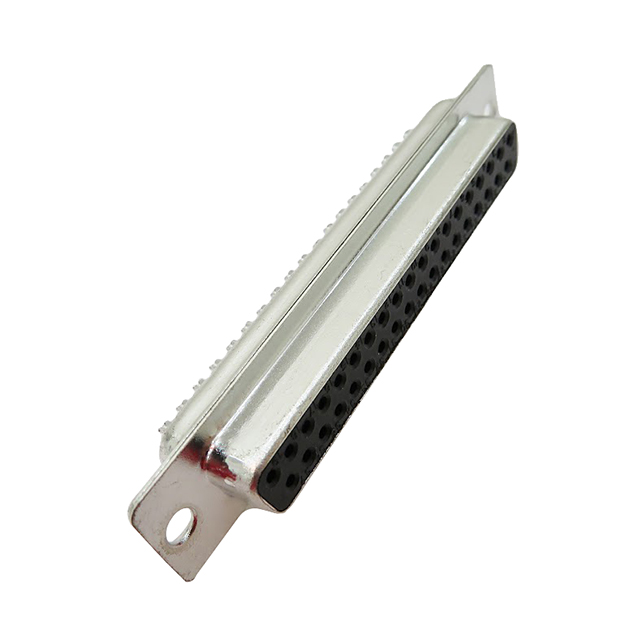

CONN D-SUB SKT 37 POS SOLDER CUP ST CABLE MOUNT 37 TERMINAL 1 PORT TRAY
Deep-Dive with AI
Search across all available documentation for this part.
DC37-SD
ActiveAdam Tech
CONN D-SUB SKT 37 POS SOLDER CUP ST CABLE MOUNT 37 TERMINAL 1 PORT TRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DC37-SD |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Shell Size, Connector Layout | 4 (DC, C) |
| Voltage Rating | 250 VAC |
DC37 Series
| Part | Shell Size, Connector Layout | Backset Spacing | Backset Spacing | Contact Finish | Current Rating (Amps) | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Connector Type | Connector Style | Contact Form | Material Flammability Rating | Flange Feature | Contact Material | Number of Positions | Termination | Dielectric Material | Color | Voltage Rating | Features | Contact Finish Thickness | Shell Material, Finish | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | 4 (DC C) | 0.319 in | 8.1 mm | Gold | 3 A | Through Hole Right Angle | 105 ░C | -55 °C | 2 | Receptacle Female Sockets | D-Sub | Stamped | UL94 V-0 | Female Screwlock (4-40) Mating Side | Copper Alloy | 37 | Solder | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 VAC | |||||
Adam Tech | 4 (DC C) | 0.319 in | 8.1 mm | Gold | Through Hole Right Angle | 105 ░C | -40 °C | 2 | Male Pins Plug | D-Sub | Stamped | UL94 V-0 | Female Screwlock (4-40) Mating Side | Copper Alloy | 37 | Solder | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 VAC | Board Lock Grounding Indents | Flash | Steel | |||
Adam Tech | 4 (DC C) | Gold | Free Hanging (In-Line) | 105 ░C | -55 °C | 2 | Male Pins Plug | D-Sub | UL94 V-0 | Housing/Shell (Unthreaded) | Copper Alloy | 37 | Crimp | Polybutylene Terephthalate (PBT) Glass Filled | Black | Grounding Indents | Flash | ||||||||
Adam Tech | 4 (DC C) | Gold | 5 A | Free Hanging (In-Line) | 125 °C | -65 ░C | 2 | Receptacle Female Sockets | D-Sub | UL94 V-0 | Housing/Shell (4-40) | Phosphor Bronze | 37 | IDC Ribbon Cable | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 VAC | Flash | 30 AWG | 27.5 AWG | |||||
Adam Tech | 4 (DC C) | Gold | 5 A | Through Hole | 125 °C | -65 ░C | 2 | Receptacle Female Sockets | D-Sub | UL94 V-0 | 4-40 Board Side | Phosphor Bronze | 37 | Solder | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 VAC | Flash | |||||||
Adam Tech | 4 (DC C) | Gold | 3 A | Free Hanging (In-Line) | 85 °C | -20 C | 2 | Receptacle Female Sockets | D-Sub | Stamped | UL94 V-0 | Housing/Shell (Unthreaded) | Copper Alloy | 37 | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 VAC | Flash | |||||||
Adam Tech | 4 (DC C) | Gold | 5 A | Through Hole | 125 °C | -55 °C | 2 | Receptacle Female Sockets | D-Sub | UL94 V-0 | Housing/Shell (4-40) | Brass | 37 | Wire Wrap | Thermoplastic Glass Filled | Black | 600 V | Flash | Nickel Plated Steel | ||||||
Adam Tech | 4 (DC C) | Gold | Free Hanging (In-Line) | 105 ░C | -55 °C | 2 | Receptacle Female Sockets | D-Sub | Stamped | UL94 V-0 | Housing/Shell (Unthreaded) | Copper Alloy | 37 | Crimp | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 VAC | Flash |
