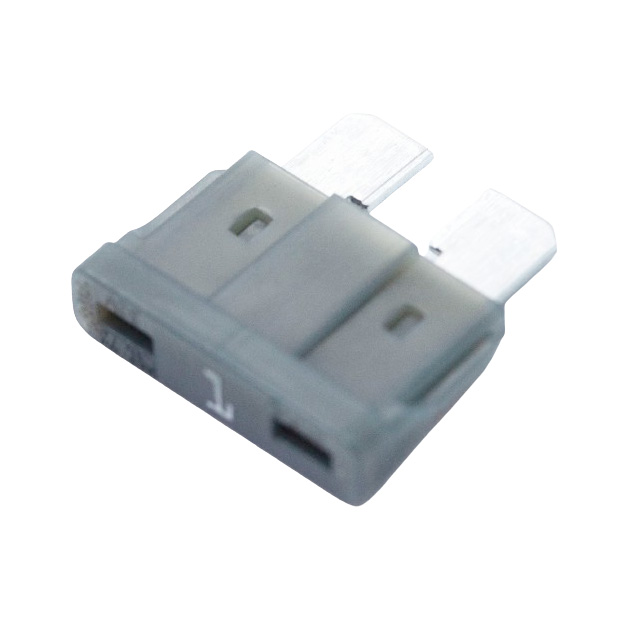

ANR-1A

Active

OptiFuse

FUSE AUTO 1A 32VDC BLADE ATO/ATC

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 1A 32VDC BLADE ATO/ATC

Technical Specifications

Parameters and characteristics for this part

Specification	ANR-1A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Black
Current Rating (Amps)	1 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	ATO, Blade, ATC
Response Time	Fast Blow
Size / Dimension [x]	19.3 mm
Size / Dimension [x]	0.76 "
Size / Dimension [y]	0.197 "
Size / Dimension [y]	5 mm
Size / Dimension [z]	0.494 in
Size / Dimension [z]	12.54 mm
Voltage Rating - DC	32 V

FUSE AUTO 1A 32VDC BLADE ATO/ATC

Part	Package / Case	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Color	Current Rating (Amps)	Mounting Type	Voltage Rating - DC	Response Time	Breaking Capacity @ Rated Voltage	Fuse Type
OptiFuse ANR-1A	ATC, ATO, Blade	ISO, SAE	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	-40 °C	105 ░C	Black	1 A	Requires Holder	32 V	Fast Blow	1 kA	Automotive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.32

General part information

1 A AC 32 V DC Fuse Automotive Requires Holder Blade, ATO/ATC
