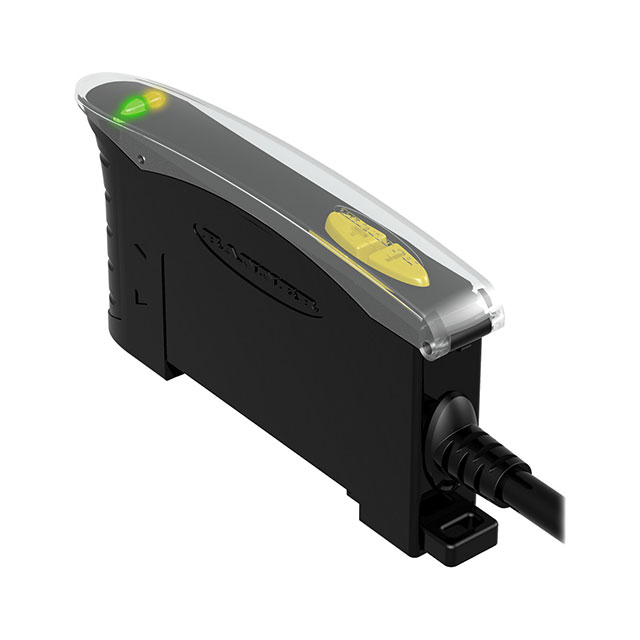

D10BFP
ActiveBANNER ENGINEERING
FIBER OPTIC SENSOR, NPN/PNP, 2M CABLE, PLASTIC, 10 TO 30VDC, IP50/NEMA 4X, D10 EXPERT SERIES
D10BFP
ActiveBANNER ENGINEERING
FIBER OPTIC SENSOR, NPN/PNP, 2M CABLE, PLASTIC, 10 TO 30VDC, IP50/NEMA 4X, D10 EXPERT SERIES
Description
General part information
D10BF Series
Fiber Optic Optical Sensor NPN/PNP
Technical Specifications
Parameters and characteristics for this part
| Specification | D10BFP |
|---|---|
| Cable Length | 78.74 in |
| Connection Method | Cable |
| Ingress Protection | NEMA 1 IEC IP50, IEC, IP50, NEMA 1 |
| Light Source | Red LED |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -10 °C |
| Output Configuration | NPN, PNP |
| Response Time | 500 µs |
| Sensing Method | Fiber Optic |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
