922306 - 922306

922306

Active
3M (TC)

BREADBOARD, SOLDERLESS, PLASTIC, 101.6MMX137.16MM

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification922306
Number of 5-Tie Point Terminals94
Number of Binding Posts2
Number of Distribution Buses2
Number of Terminal Strips1
Number of Tie Points (Total)610
Size / Dimension [x]5.4 in
Size / Dimension [x]137.2 mm
Size / Dimension [y]101.6 mm
Size / Dimension [y]4 "
TypeAssembly (On Frame)
Wire Gauge22 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 73.78
5$ 69.56
10$ 67.46
25$ 61.13
50$ 59.02
100$ 56.92
NewarkEach 20$ 67.47

Description

General part information

92230 Series

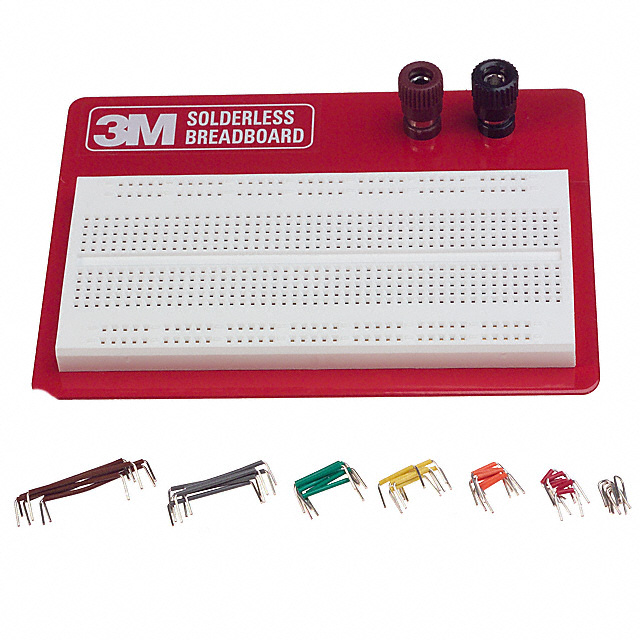

The 922306 is a Breadboard for easy, solderless plug-in circuit building. Terminal positions contain electrically connected tie-points spaced on a continuous 0.100" matrix to accept any component with 0.100" lead spacing. Five-way binding posts provide interface for connections from power supplies, signal generators or other equipment steel base has baked enamel finish. Rubber feet reduce sliding during bench work. Jumper wires included.
