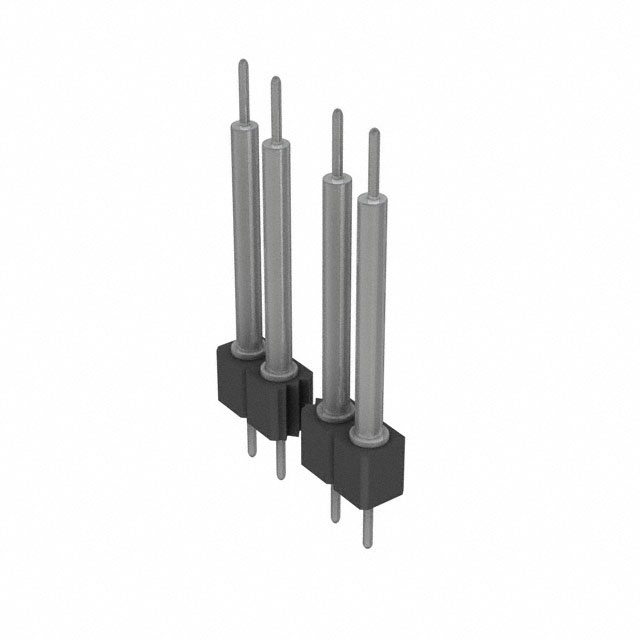

HEADER SOLDERTAIL SIP 32POS

342-90-132-00-593000

Active

Mill-Max Manufacturing Corp.

HEADER SOLDERTAIL SIP 32POS

Description Specifications Series Pricing CAD Documents

Description

General part information

342-90 Series

32 Position DIP, DIL - Header Connector Post, Extended Tin-Lead

Technical Specifications

Parameters and characteristics for this part

Specification	342-90-132-00-593000

Color	Black
Connector Type	DIP, DIL - Header
Contact Finish	Tin-Lead
Contact Finish Thickness	200 µin
Contact Type	Post, Extended
Mounting Type	Through Hole
Number of Positions	32
Number of Rows	1
Pitch	0.1 in
Termination	Solder

342-90 Series

...

Part	Connector Type	Pitch	Color	Contact Finish Thickness	Mounting Type	Termination	Number of Positions	Number of Rows	Contact Finish	Contact Type	Contact Finish Thickness - Post (Mating)	Length - Tail	Contact Finish - Post (Mating)	Length - Stack Height	Length - Post (Mating)	Length - Overall Pin
Mill-Max Manufacturing Corp. 342-90-132-00-593000	DIL - Header DIP	0.1 in	Black	200 µin	Through Hole	Solder	32	1	Tin-Lead	Extended Post
Mill-Max Manufacturing Corp. 342-90-119-00-593000		0.1 in	Black		Through Hole	Solder	19	1			200 µin	0.125 in	Tin-Lead	0.585 in	0.125 in	0.835 in
Mill-Max Manufacturing Corp. 342-90-112-00-591000		0.1 in	Black		Through Hole	Solder	12	1			200 µin	0.125 in	Tin-Lead	0.21 in	0.125 in	0.46 in
Mill-Max Manufacturing Corp. 342-90-136-00-592000		0.1 in	Black		Through Hole	Solder	36	1			200 µin	0.125 in	Tin-Lead	0.335 in	0.125 in	0.585 in
Mill-Max Manufacturing Corp. 342-90-107-00-594000		0.1 in	Black		Through Hole	Solder	7	1			200 µin	0.125 in	Tin-Lead	0.835 in	0.125 in	1.085 in
Mill-Max Manufacturing Corp. 342-90-156-00-594000		0.1 in	Black		Through Hole	Solder	56	1			200 µin	0.125 in	Tin-Lead	0.835 in	0.125 in	1.085 in
Mill-Max Manufacturing Corp. 342-90-127-00-591000		0.1 in	Black		Through Hole	Solder	27	1			200 µin	0.125 in	Tin-Lead	0.21 in	0.125 in	0.46 in
Mill-Max Manufacturing Corp. 342-90-104-00-594000		0.1 in	Black		Through Hole	Solder	4	1			200 µin	0.125 in	Tin-Lead	0.835 in	0.125 in	1.085 in
Mill-Max Manufacturing Corp. 342-90-106-00-594000		0.1 in	Black		Through Hole	Solder	6	1			200 µin	0.125 in	Tin-Lead	0.835 in	0.125 in	1.085 in
Mill-Max Manufacturing Corp. 342-90-117-00-591000		0.1 in	Black		Through Hole	Solder	17	1			200 µin	0.125 in	Tin-Lead	0.21 in	0.125 in	0.46 in
