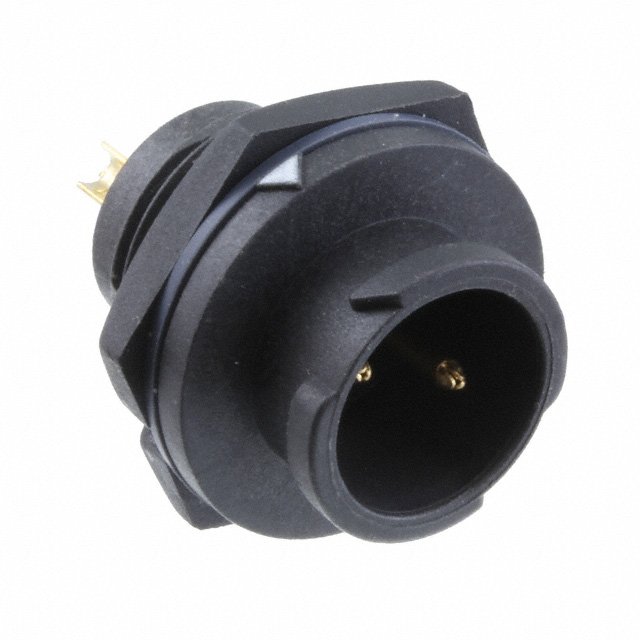

BB-02RMMS-QC8001

Active

Amphenol LTW

CONN RCPT MALE 2P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT MALE 2P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	BB-02RMMS-QC8001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Voltage Rating	300 VAC

Part	Orientation	Mounting Feature	Voltage Rating	Material Flammability Rating	Contact Finish - Mating	Ingress Protection	Connector Type	Fastening Type	Current Rating (Amps)	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Shell Material	Shielding	Contact Material	Number of Positions	Insert Material	Color
Amphenol LTW BB-02RMMS-QC8001	Keyed	Bulkhead - Rear Side Nut	300 VAC	UL94 V-0	Gold	IP68 - Dust Tight Waterproof	Male Pins Receptacle	Push-Pull	10 A	Plastic	-40 °C	105 ░C	B	Glass Filled Nylon Polyamide (PA)	Unshielded	Copper Alloy	2	Polyamide (PA) Nylon Glass Filled	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (Data) Position Circular Connector Receptacle, Male Pins Solder Cup
