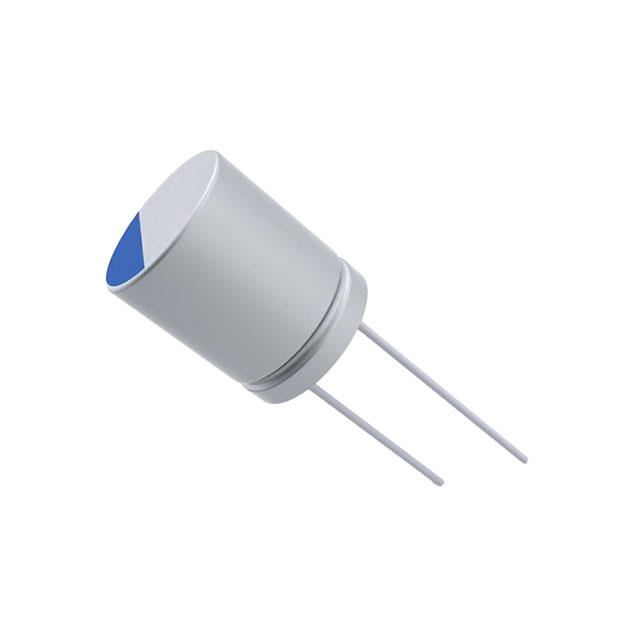

A755KS476M1EAAE025
ActiveKEMET
POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 47 ΜF, 25 V, RADIAL LEADED, 0.025 OHM
Deep-Dive with AI
Search across all available documentation for this part.
A755KS476M1EAAE025
ActiveKEMET
POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 47 ΜF, 25 V, RADIAL LEADED, 0.025 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A755KS476M1EAAE025 |
|---|---|
| Applications | General Purpose |
| Capacitance | 47 µF |
| ESR (Equivalent Series Resistance) | 25 mOhm |
| Height - Seated (Max) [Max] [z] | 13 mm |
| Height - Seated (Max) [Max] [z] | 0.512 " |
| Lead Spacing | 3.5 mm |
| Lead Spacing | 0.138 in |
| Lifetime @ Temp. | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Can |
| Ripple Current @ High Frequency | 2.32 A |
| Ripple Current @ Low Frequency | 116 mA |
| Size / Dimension [diameter] | 0.315 " |
| Size / Dimension [diameter] | 8 mm |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 25 VDC |
A755KS Series
| Part | Tolerance | Ripple Current @ High Frequency | Voltage - Rated | Capacitance | Lead Spacing | Lead Spacing | Ripple Current @ Low Frequency | Size / Dimension [diameter] | Size / Dimension [diameter] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Lifetime @ Temp. | ESR (Equivalent Series Resistance) | Type | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KEMET | 20 % | 4.8 A | 2.5 V | 820 µF | 3.5 mm | 0.138 in | 240 mA | 0.315 " | 8 mm | 13 mm | 0.512 " | 5000 Hrs | 14 mOhms | Polymer | General Purpose | 105 ░C | -55 °C | Through Hole | Radial Can |
KEMET | 20 % | 3 A | 25 VDC | 220 µF | 3.5 mm | 0.138 in | 150 mA | 0.315 " | 8 mm | 13 mm | 0.512 " | 5000 Hrs | 25 mOhm | Polymer | General Purpose | 105 ░C | -55 °C | Through Hole | Radial Can |
KEMET | 20 % | 4.82 A | 10 V | 820 µF | 3.5 mm | 0.138 in | 241 mA | 0.315 " | 8 mm | 13 mm | 0.512 " | 5000 Hrs | 14 mOhms | Polymer | General Purpose | 105 ░C | -55 °C | Through Hole | Radial Can |
KEMET | 20 % | 4.82 A | 10 V | 270 µF | 3.5 mm | 0.138 in | 241 mA | 0.315 " | 8 mm | 13 mm | 0.512 " | 5000 Hrs | 15 mOhm | Polymer | General Purpose | 105 ░C | -55 °C | Through Hole | Radial Can |
KEMET | 20 % | 2.32 A | 25 VDC | 47 µF | 3.5 mm | 0.138 in | 116 mA | 0.315 " | 8 mm | 13 mm | 0.512 " | 5000 Hrs | 25 mOhm | Polymer | General Purpose | 105 ░C | -55 °C | Through Hole | Radial Can |
KEMET | 20 % | 4.5 A | 6.3 V | 1000 µF | 3.5 mm | 0.138 in | 225 mA | 0.315 " | 8 mm | 13 mm | 0.512 " | 5000 Hrs | 13 mOhms | Polymer | General Purpose | 105 ░C | -55 °C | Through Hole | Radial Can |
KEMET | 20 % | 4.9 A | 4 V | 1.2 mF | 3.5 mm | 0.138 in | 245 mA | 0.315 " | 8 mm | 13 mm | 0.512 " | 5000 Hrs | 14 mOhms | Polymer | General Purpose | 105 ░C | -55 °C | Through Hole | Radial Can |
KEMET | 20 % | 4.42 A | 20 V | 100 µF | 3.5 mm | 0.138 in | 221 mA | 0.315 " | 8 mm | 13 mm | 0.512 " | 5000 Hrs | 20 mOhms | Polymer | General Purpose | 105 ░C | -55 °C | Through Hole | Radial Can |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
A755KS Series
47 µF 25 V Aluminum - Polymer Capacitors Radial, Can 25mOhm 5000 Hrs @ 105°C
