ABS6-G
ActiveComchip Technology

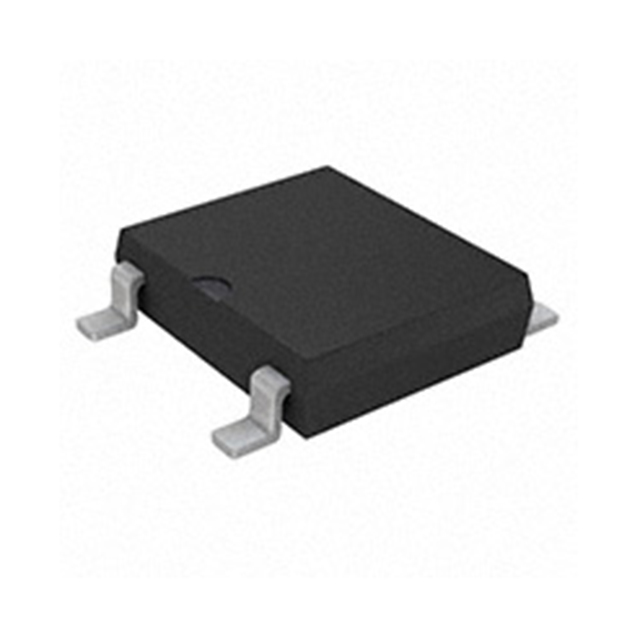

RECTIFIER BRIDGE DIODE SINGLE 600V 1A 4-PIN CASE ABS T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ABS6-G
ActiveComchip Technology
RECTIFIER BRIDGE DIODE SINGLE 600V 1A 4-PIN CASE ABS T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ABS6-G | ABS6 Series |
|---|---|---|
| Current - Average Rectified (Io) | - | 1 A |
| Current - Reverse Leakage @ Vr | - | 5 µA |
| Diode Type | - | Single Phase |
| Mounting Type | - | Surface Mount |
| null | - | |
| Operating Temperature | - | -55 °C |
| Operating Temperature | - | 150 °C |
| Package / Case | - | 4-SMD, Gull Wing |
| Supplier Device Package | - | ABS |
| Technology | - | Standard |
| Voltage - Forward (Vf) (Max) @ If | - | 1.1 V |
| Voltage - Peak Reverse (Max) | - | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.51 | |
| 10 | $ 0.40 | |||
| 100 | $ 0.24 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.15 | |||
| Digi-Reel® | 1 | $ 0.51 | ||
| 10 | $ 0.40 | |||
| 100 | $ 0.24 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.15 | |||
ABS6 Series
RECTIFIER BRIDGE DIODE SINGLE 600V 1A 4-PIN CASE ABS T/R
| Part | Diode Type | Voltage - Forward (Vf) (Max) @ If | Current - Reverse Leakage @ Vr | Package / Case | Current - Average Rectified (Io) | Mounting Type | Voltage - Peak Reverse (Max) [Max] | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Technology |
|---|---|---|---|---|---|---|---|---|---|---|---|
Comchip Technology ABS6-G | Single Phase | 1.1 V | 5 µA | 4-SMD, Gull Wing | 1 A | Surface Mount | 600 V | ABS | -55 °C | 150 °C | Standard |
Comchip Technology ABS6-G |
Description
General part information
ABS6 Series
Bridge Rectifier Single Phase Standard 600 V Surface Mount ABS
