N2520-6003-UG

Active

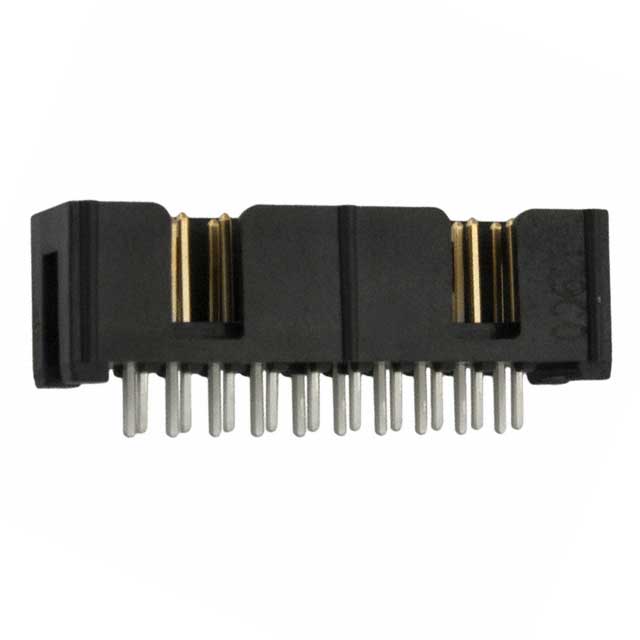

CONN HEADER VERT 20POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

N2520-6003-UG

Active

CONN HEADER VERT 20POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N2520-6003-UG	N2520 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin-Lead, Tin
Contact Finish Thickness - Mating	15 µin	15 - 30 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 - 0.76 µm
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	-	6.1 mm
Contact Length - Mating	-	0.24 in
Contact Length - Post	3.94 mm	2.84 - 3.94 mm
Contact Length - Post	0.155 "	0.112 - 0.155 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Push-Pull	Push-Pull
Features	Keying Slot	Keying Slot
Insulation Color	Black	Black
Insulation Height	-	0.338 in
Insulation Height	-	8.59 mm
Insulation Height [z]	9.91 mm	9.91 mm
Insulation Height [z]	0.39 in	0.39 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Right Angle, Through Hole
Number of Positions	20	20
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

N2520 Series

CONN HEADER R/A 20POS 2.54MM

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Style	Number of Positions Loaded	Number of Positions	Shrouding	Current Rating (Amps)	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Termination	Insulation Color	Contact Type	Contact Length - Post	Contact Length - Post	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Fastening Type	Insulation Material	Insulation Height	Insulation Height	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Contact Length - Mating	Contact Length - Mating [x]
3M N2520-5002-UG	2.54 mm	0.1 in	Gold	Board to Board, Cable	All	20	Shrouded - 4 Wall	1.75 A	UL94 V-0	0.1 in	2.54 mm	Solder	Black	Male Pin	2.84 mm	0.112 in	Header	15 µin	0.38 µm	2	Square	105 ░C	-55 °C	Through Hole, Right Angle	Push-Pull	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	0.338 in	8.59 mm	Copper Alloy	200 µin	5.08 µm	Keying Slot	Tin-Lead
3M N2520-6002-RB	2.54 mm	0.1 in	Gold	Board to Board, Cable	All	20	Shrouded - 4 Wall	1.75 A	UL94 V-0	0.1 in	2.54 mm	Solder	Black	Male Pin	2.84 mm	0.112 in	Header	30 Áin	0.76 Ám	2	Square	105 ░C	-55 °C	Through Hole	Push-Pull	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester			Copper Alloy	200 µin	5.08 µm	Keying Slot	Tin	9.91 mm	0.39 in
3M N2520-6003-UG	2.54 mm	0.1 in	Gold	Board to Board, Cable	All	20	Shrouded - 4 Wall	1.75 A	UL94 V-0	0.1 in	2.54 mm	Solder	Black	Male Pin	3.94 mm	0.155 "	Header	15 µin	0.38 µm	2	Square	105 ░C	-55 °C	Through Hole	Push-Pull	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester			Copper Alloy	200 µin	5.08 µm	Keying Slot	Tin-Lead	9.91 mm	0.39 in
3M N2520-6002-UB	2.54 mm	0.1 in	Gold	Board to Board, Cable	All	20	Shrouded - 4 Wall	1.75 A	UL94 V-0	0.1 in	2.54 mm	Solder	Black	Male Pin	2.84 mm	0.112 in	Header	30 Áin	0.76 Ám	2	Square	105 ░C	-55 °C	Through Hole	Push-Pull	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester			Copper Alloy	200 µin	5.08 µm	Keying Slot	Tin-Lead	9.91 mm	0.39 in
3M N2520-50K2-RB	2.54 mm	0.1 in	Gold	Board to Board, Cable	All	20	Shrouded - 4 Wall	1.75 A	UL94 V-0	0.1 in	2.54 mm	Solder	Black	Male Pin	2.84 mm	0.112 in	Header	30 Áin	0.76 Ám	2	Square	105 ░C	-55 °C	Through Hole, Right Angle	Push-Pull	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	0.338 in	8.59 mm	Copper Alloy	200 µin	5.08 µm	Keying Slot	Tin			6.1 mm	0.24 in
3M N2520-5002-RB	2.54 mm	0.1 in	Gold	Board to Board, Cable	All	20	Shrouded - 4 Wall	1.75 A	UL94 V-0	0.1 in	2.54 mm	Solder	Black	Male Pin	2.84 mm	0.112 in	Header	30 Áin	0.76 Ám	2	Square	105 ░C	-55 °C	Through Hole, Right Angle	Push-Pull	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	0.338 in	8.59 mm	Copper Alloy	200 µin	5.08 µm	Keying Slot	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

N2520 Series

Connector Header Through Hole 20 position 0.100" (2.54mm)
