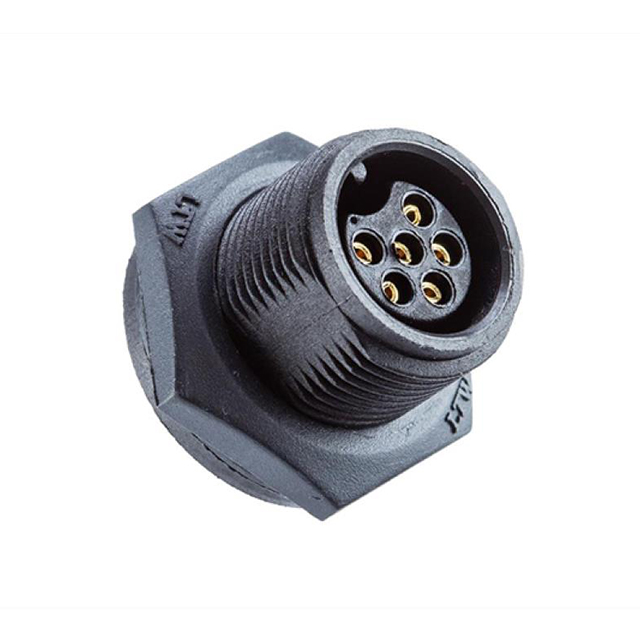

BD-06PMFP-SC7001

Active

Amphenol LTW

CERES, STANDARD SIZE, 5A, 06 PINS, RECEPTACLE, CIRCULAR ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, STANDARD SIZE, 5A, 06 PINS, RECEPTACLE, CIRCULAR ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	BD-06PMFP-SC7001

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Termination	Solder
Voltage Rating	250 VDC

Part	Termination	Connector Type	Number of Positions	Shielding	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Color	Mounting Feature	Orientation	Insert Material	Voltage Rating	Current Rating (Amps)	Contact Finish - Mating	Shell Size - Insert	Shell Material	Primary Material
Amphenol LTW BD-06PMFP-SC7001	Solder	Receptacle Female Sockets	6	Unshielded	Copper Alloy	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Black	Bulkhead - Front Side Nut	Keyed	Polyamide (PA) Nylon Glass Filled	250 VDC	5 A	Gold	B	Glass Filled Nylon Polyamide (PA)	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Solder
