033I,BK

Active

Serpac

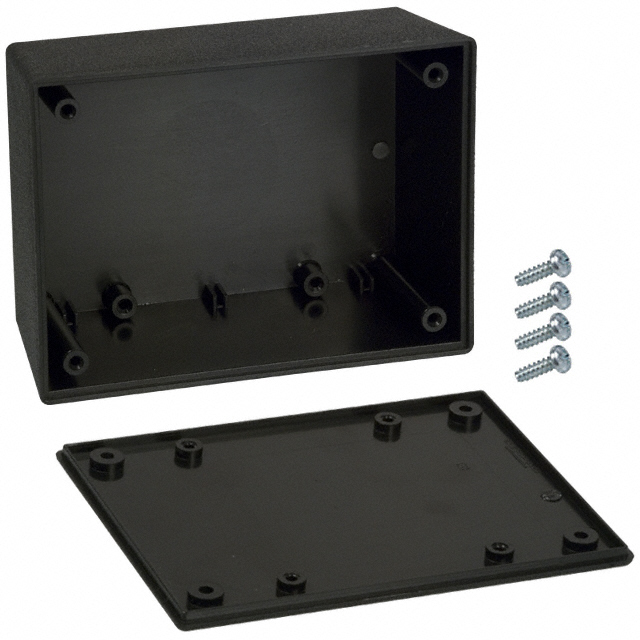

BOX ABS BLACK 4.38"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 4.38"L X 3.25"W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black 4.380" L x 3.250" W (111.25mm x 82.55mm) X 1.900" (48.26mm)

Technical documentation and resources

Specification	033I,BK	033I Series

Area (L x W)	14.2 in²	14.2 in²
Area (L x W)	92 cm˛	92 cm˛
Color	Black	Black, Gray, Almond
Container Type	Box	Box
Features	PCB Supports	PCB Supports
Height [z]	48.26 mm	48.26 mm
Height [z]	1.9 in	1.9 in
Material	Plastic, ABS	Plastic, ABS
Material Flammability Rating	UL94 HB	UL94 HB
Ratings	IP40, NEMA 1	IP40, NEMA 1
Thickness	2.54 mm	2.54 mm
Thickness	0.1 in	0.1 in
Weight	99.79 g	99.79 g
Weight	0.22 lb	0.22 lb

Part	Weight	Weight	Container Type	Features	Ratings	Height [z]	Height [z]	Material	Material Flammability Rating	Thickness	Thickness	Color	Area (L x W)	Area (L x W)
Serpac 033I,BK	99.79 g	0.22 lb	Box	PCB Supports	IP40, NEMA 1	48.26 mm	1.9 in	Plastic, ABS	UL94 HB	2.54 mm	0.1 in	Black	14.2 in²	92 cm˛
Serpac 033I,GY	99.79 g	0.22 lb	Box	PCB Supports	IP40, NEMA 1	48.26 mm	1.9 in	Plastic, ABS	UL94 HB	2.54 mm	0.1 in	Gray	14.2 in²	92 cm˛
Serpac 033I,AL	99.79 g	0.22 lb	Box	PCB Supports	IP40, NEMA 1	48.26 mm	1.9 in	Plastic, ABS	UL94 HB	2.54 mm	0.1 in	Almond	14.2 in²	92 cm˛
