Mill-Max Manufacturing Corp.

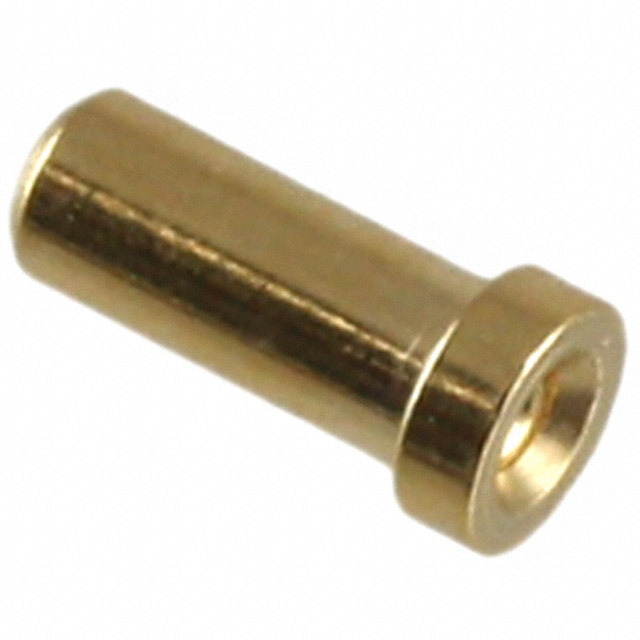

CONN PIN RCPT .015-.025 SOLDER

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.025 SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	0341-0-15-15-30-27-10-0

Accepts Pin Diameter [Max]	0.025 "
Accepts Pin Diameter [Max]	0.64 mm
Accepts Pin Diameter [Min]	0.015 "
Accepts Pin Diameter [Min]	0.38 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	2.36 mm
Flange Diameter [diameter]	0.093 in
Mounting Hole Diameter [diameter]	1.85 mm
Mounting Hole Diameter [diameter]	0.073 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Socket Depth	0.2 in
Socket Depth	5.08 mm
Tail Type	No Tail
Termination	Solder

Part	Contact Finish Thickness	Contact Finish Thickness	Socket Depth	Socket Depth	Contact Finish	Termination	Contact Material	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]
Mill-Max Manufacturing Corp. 0341-0-15-01-30-02-10-0	2.54 µm	100 µin	0.2 in	5.08 mm	Tin-Lead	Solder	Beryllium Copper	No Tail	2.36 mm	0.093 in	-55 °C	125 °C	1.85 mm	0.073 in	0.025 "	0.64 mm	0.015 "	0.38 mm
Mill-Max Manufacturing Corp. 0341-0-15-01-30-14-10-0	0.25 Ám	10 Áin	0.2 in	5.08 mm	Gold	Solder	Beryllium Copper	No Tail	2.36 mm	0.093 in	-55 °C	125 °C	1.85 mm	0.073 in	0.025 "	0.64 mm	0.015 "	0.38 mm
Mill-Max Manufacturing Corp. 0341-0-15-80-30-27-10-0	0.76 Ám	30 Áin	0.2 in	5.08 mm	Gold	Solder	Beryllium Copper	No Tail	2.36 mm	0.093 in	-55 °C	125 °C	1.85 mm	0.073 in	0.025 "	0.64 mm	0.015 "	0.38 mm
Mill-Max Manufacturing Corp. 0341-0-15-15-30-27-10-0	0.76 Ám	30 Áin	0.2 in	5.08 mm	Gold	Solder	Beryllium Copper	No Tail	2.36 mm	0.093 in	-55 °C	125 °C	1.85 mm	0.073 in	0.025 "	0.64 mm	0.015 "	0.38 mm
Mill-Max Manufacturing Corp. 0341-0-15-15-30-14-10-0	0.25 Ám	10 Áin	0.2 in	5.08 mm	Gold	Solder	Beryllium Copper	No Tail	2.36 mm	0.093 in	-55 °C	125 °C	1.85 mm	0.073 in	0.025 "	0.64 mm	0.015 "	0.38 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) No Tail Solder
