1072 SL002

Active

ALPHA WIRE

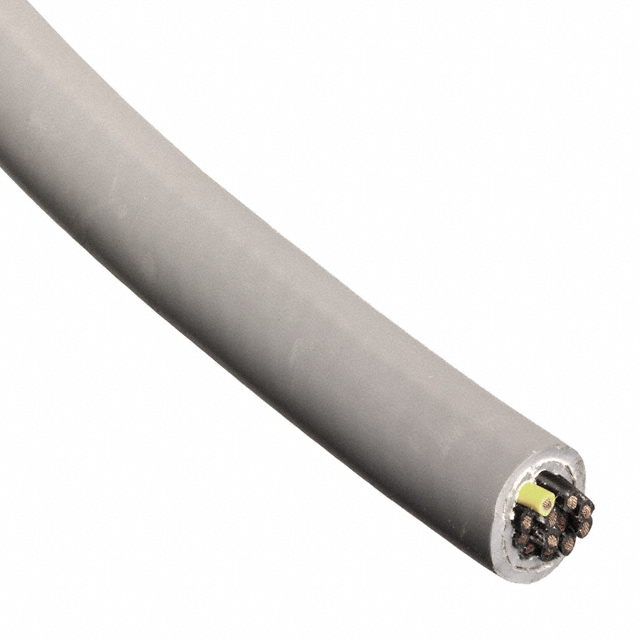

CABLE 12COND 16AWG SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 12COND 16AWG SLATE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1072 SL002	1072 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	19	19
Conductor Strand [custom]	0.0117 in	0.0117 in
Jacket (Insulation) Diameter [diameter]	0.64 "	0.64 "
Jacket (Insulation) Diameter [diameter]	16.26 mm	16.26 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.6 mm	1.6 mm
Jacket (Insulation) Thickness	0.063 in	0.063 in
Jacket Color	Slate	Slate
Length [x]	500 '	100 - 500 '
Length [x]	152.4 m	30.5 - 152.4 m
Number of Conductors	12	12
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Usage	Control, Communication	Control, Communication
Voltage	600 V	600 V
Wire Gauge	16 AWG	16 AWG

CABLE 12COND 16AWG SLATE

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Length [x]	Length [x]	Jacket Color	Conductor Material	Wire Gauge	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Voltage	Usage	Number of Conductors
ALPHA WIRE 1072 SL002	0.64 "	16.26 mm	Poly-Vinyl Chloride (PVC)	500 '	152.4 m	Slate	Copper, Tinned	16 AWG	Multi-Conductor	1.6 mm	0.063 in	19	0.0117 in	-20 C	80 C	Poly-Vinyl Chloride (PVC)	600 V	Communication, Control	12
ALPHA WIRE 1072 SL005	0.64 "	16.26 mm	Poly-Vinyl Chloride (PVC)	100 ft	30.5 m	Slate	Copper, Tinned	16 AWG	Multi-Conductor	1.6 mm	0.063 in	19	0.0117 in	-20 C	80 C	Poly-Vinyl Chloride (PVC)	600 V	Communication, Control	12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 7.98

General part information

12 Conductor Multi-Conductor Cable Slate 16 AWG 500.0' (152.4m)
