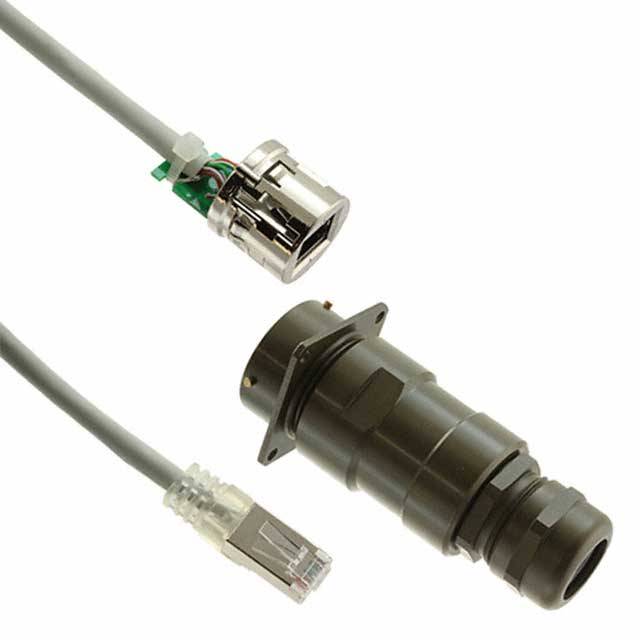

RJF2PEM2G05100BTX

Active

Amphenol Socapex

CABLE MOD 8P8C JACK-PLUG 1.64'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet RJ Field Series Brochure

RJF2PEM2G05100BTX

Active

Amphenol Socapex

CABLE MOD 8P8C JACK-PLUG 1.64'

Deep-Dive with AI

DocumentsDatasheet RJ Field Series Brochure

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RJF2PEM2G05100BTX	RJF2PE Series

Cable Type	Round Cable	Round Cable
Color	Gray	Gray
Connector Type	Jack to Plug	Jack to Plug
Convert From (Adapter End)	-	Jack, 8p8c (RJ45)
Convert To (Adapter End)	-	8p8c (RJ45), Jack, PCB
Features	Circular Bayonet Coupling, Molded Plugs	Circular Bayonet Coupling, Self-Closing Cap, Cap, Metal Gland, Industrial Environments, Molded Plugs
Ingress Protection	-	IP67 - Dust Tight, Waterproof, IP68 - Dust Tight, Waterproof
Length	-	4.92 '
Length	-	1.5 m
Length [x]	1.64 ft	0.98 - 3.28 ft
Length [x]	500 mm	1 - 500 m
Mounting Feature	-	Metal Gland
Mounting Type	Panel Mount, Flange	Square Flange, Panel Mount, Right Angle, Panel Mount, Square Flange, Free Hanging (In-Line), Flange
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Ratings	-	Cat5e
Shell Material, Finish	-	Metal, Olive Drab Cadmium Plated, Aluminum, Nickel Plated, Nickel Plating
Shielding	Shielded	Unshielded, Shielded
Style	Cat5e, Industrial Environments - IP68	Cat5e, Industrial Environments - IP68
Type	-	Coupler, Adapter

RJF2PE Series

CONN MOD COUPLER 8P8C TO 8P8C

Part	Features	Type	Convert To (Adapter End)	Convert From (Adapter End)	Ratings	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Ingress Protection	Shell Material, Finish	Mounting Feature	Number of Positions/Contacts	Color	Style	Connector Type	Length [x]	Length [x]	Cable Type
Amphenol Socapex RJF2PE2N03100BTX	Circular Bayonet Coupling	Coupler	8p8c (RJ45), Jack	Jack, 8p8c (RJ45)	Cat5e	Panel Mount, Right Angle, Square Flange	85 °C	-40 °C
Amphenol Socapex RJF2PE1B	Circular Bayonet Coupling	Coupler	8p8c (RJ45), Jack	Jack, 8p8c (RJ45)	Cat5e	Panel Mount, Square Flange	85 °C	-40 °C	Unshielded	IP67 - Dust Tight, Waterproof	Metal
Amphenol Socapex RJF2PEM1B	Circular Bayonet Coupling	Coupler	8p8c (RJ45), Jack	Jack, 8p8c (RJ45)	Cat5e	Panel Mount, Square Flange	85 °C	-40 °C	Unshielded	IP68 - Dust Tight, Waterproof	Metal	Metal Gland
Amphenol Socapex RJF2PE1NSCC	Circular Bayonet Coupling	Coupler	8p8c (RJ45), Jack	Jack, 8p8c (RJ45)	Cat5e	Panel Mount, Right Angle, Square Flange	85 °C	-40 °C		IP68 - Dust Tight, Waterproof
Amphenol Socapex RJF2PEM1BSCC	Circular Bayonet Coupling, Self-Closing Cap	Coupler	8p8c (RJ45), Jack	Jack, 8p8c (RJ45)	Cat5e	Free Hanging (In-Line)	85 °C	-40 °C	Unshielded	IP67 - Dust Tight, Waterproof		Metal Gland
Amphenol Socapex RJF2PEM1GSCC	Cap, Circular Bayonet Coupling, Industrial Environments, Metal Gland	Coupler	8p8c (RJ45), Jack	Jack, 8p8c (RJ45)	Cat5e	Free Hanging (In-Line)	85 °C	-40 °C	Unshielded	IP67 - Dust Tight, Waterproof	Aluminum, Olive Drab Cadmium Plated	Metal Gland
Amphenol Socapex RJF2PE2N00	Circular Bayonet Coupling	Coupler	8p8c (RJ45), Jack	Jack, 8p8c (RJ45)	Cat5e	Panel Mount, Right Angle, Square Flange	85 °C	-40 °C
Amphenol Socapex RJF2PEM2G10100BTX	Circular Bayonet Coupling, Molded Plugs					Flange, Panel Mount			Shielded				8p8c (RJ45, Ethernet)	Gray	Cat5e, Industrial Environments - IP68	Jack to Plug	1 m	3.28 ft	Round Cable
Amphenol Socapex RJF2PEM2G05100BTX	Circular Bayonet Coupling, Molded Plugs					Flange, Panel Mount			Shielded				8p8c (RJ45, Ethernet)	Gray	Cat5e, Industrial Environments - IP68	Jack to Plug	500 mm	1.64 ft	Round Cable
Amphenol Socapex RJF2PE1N	Circular Bayonet Coupling	Coupler	8p8c (RJ45), Jack	Jack, 8p8c (RJ45)	Cat5e	Panel Mount, Square Flange	85 °C	-40 °C	Unshielded	IP67 - Dust Tight, Waterproof	Metal, Nickel Plated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 121.43

Description

General part information

RJF2PE Series

Modular Cable Jack to Plug 8p8c (RJ45, Ethernet) 1.64' (500.0mm) Shielded

Documents

Technical documentation and resources

Datasheet

RJ Field Series Brochure

Datasheet
