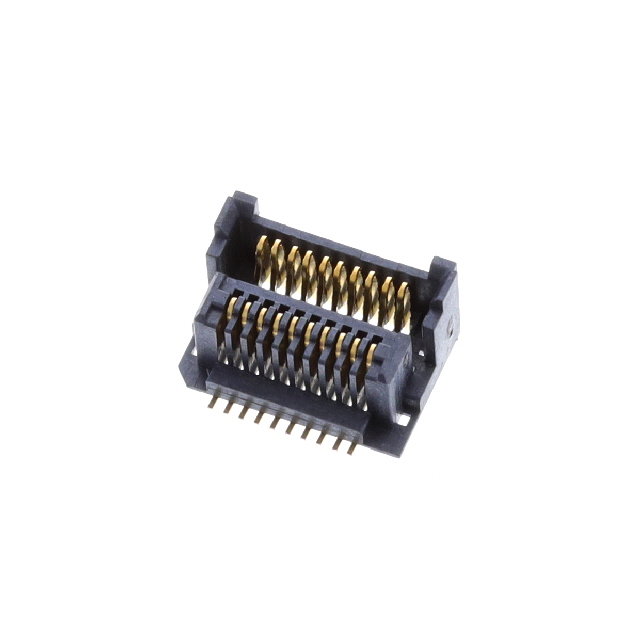

10106814-021002LF

Active

Amphenol ICC (FCI)

CONN SELF-MATE 20POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 10106814-093012ALF

10106814-021002LF

Active

Amphenol ICC (FCI)

CONN SELF-MATE 20POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet 10106814-093012ALF

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10106814-021002LF

Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	GXT™, Gold or Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Height Above Board	3.55 mm
Height Above Board	0.14 in
Mated Stacking Heights	4.5 mm, 4 mm, 5.5 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

10106814 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Type	Height Above Board	Height Above Board	Mounting Type	Pitch [x]	Pitch [x]	Number of Positions	Contact Finish	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]
Amphenol ICC (FCI) 10106814-024002LF	15 µin	0.38 µm	2	Self Mating Non-Gendered Hermaphroditic	5.05 mm	0.199 in	Surface Mount	0.5 mm	0.02 in	20	Gold or Gold GXT™	5.5 mm 6.5 mm 7 mm
Amphenol ICC (FCI) 10106814-051002LF	15 µin	0.38 µm	2	Self Mating Non-Gendered Hermaphroditic	3.55 mm	0.14 in	Surface Mount	0.5 mm	0.02 in	50	Gold or Gold GXT™	4 mm 4.5 mm 5.5 mm
Amphenol ICC (FCI) 10106814-063002LF	15 µin	0.38 µm	2	Self Mating Non-Gendered Hermaphroditic			Surface Mount	0.5 mm	0.02 in	60	Gold or Gold GXT™		4.55 mm	0.179 in
Amphenol ICC (FCI) 10106814-064002LF	15 µin	0.38 µm	2	Self Mating Non-Gendered Hermaphroditic	5.05 mm	0.199 in	Surface Mount	0.5 mm	0.02 in	60	Gold or Gold GXT™	5.5 mm 6.5 mm 7 mm
Amphenol ICC (FCI) 10106814-073002LF	15 µin	0.38 µm	2	Self Mating Non-Gendered Hermaphroditic			Surface Mount	0.5 mm	0.02 in	70	Gold or Gold GXT™		4.55 mm	0.179 in
Amphenol ICC (FCI) 10106814-093012ALF	30 Áin	0.76 Ám	2	Self Mating Non-Gendered Hermaphroditic			Surface Mount	0.5 mm	0.02 in	90	Gold or Gold GXT™		4.55 mm	0.179 in
Amphenol ICC (FCI) 10106814-021002LF	15 µin	0.38 µm	2	Self Mating Non-Gendered Hermaphroditic	3.55 mm	0.14 in	Surface Mount	0.5 mm	0.02 in	20	Gold or Gold GXT™	4 mm 4.5 mm 5.5 mm
Amphenol ICC (FCI) 10106814-041002LF	15 µin	0.38 µm	2	Self Mating Non-Gendered Hermaphroditic	3.55 mm	0.14 in	Surface Mount	0.5 mm	0.02 in	40	Gold or Gold GXT™	4 mm 4.5 mm 5.5 mm
Amphenol ICC (FCI) 10106814-054002LF	15 µin	0.38 µm	2	Self Mating Non-Gendered Hermaphroditic	5.05 mm	0.199 in	Surface Mount	0.5 mm	0.02 in	50	Gold or Gold GXT™	5.5 mm 6.5 mm 7 mm
Amphenol ICC (FCI) 10106814-044002LF	15 µin	0.38 µm	2	Self Mating Non-Gendered Hermaphroditic	5.05 mm	0.199 in	Surface Mount	0.5 mm	0.02 in	40	Gold or Gold GXT™	5.5 mm 6.5 mm 7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.78
		10	$ 2.89
		25	$ 2.60
		50	$ 2.41
		100	$ 2.23
		250	$ 2.02
		500	$ 1.88
	Digi-Reel®	1	$ 3.78
		10	$ 2.89
		25	$ 2.60
		50	$ 2.41
		100	$ 2.23
		250	$ 2.02
		500	$ 1.88
	Tape & Reel (TR)	1000	$ 1.75
		2000	$ 1.64
		3000	$ 1.58
		5000	$ 1.50

Description

General part information

10106814 Series

20 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold or Gold, GXT™
