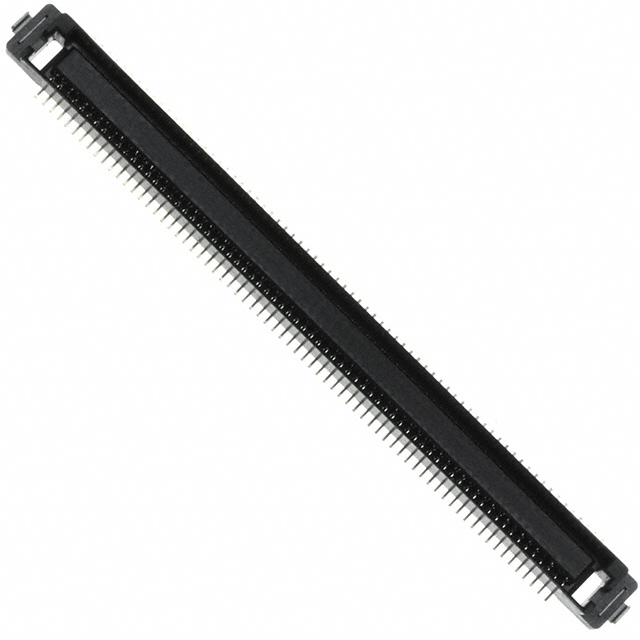

KX14-140K2DE

Obsolete

JAE Electronics

CONN RCPT 140POS SMD GOLD

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN RCPT 140POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	KX14-140K2DE

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Height Above Board	3.55 mm
Height Above Board	0.14 in
Mated Stacking Heights	4 mm, 6 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	140
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Number of Rows	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Connector Type	Mounting Type	Features	Mated Stacking Heights
JAE Electronics KX14-140K2DE	2	3.55 mm	0.14 in	0.8 mm	0.031 in	Gold	4 Áin	0.1 Ám	140	Receptacle Outer Shroud Contacts	Surface Mount	Board Guide Solder Retention	4 mm 5 mm 6 mm
JAE Electronics KX14-140K5D-C60E

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

140 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
