Q-1T0200005002M

Active

Amphenol Custom Cable

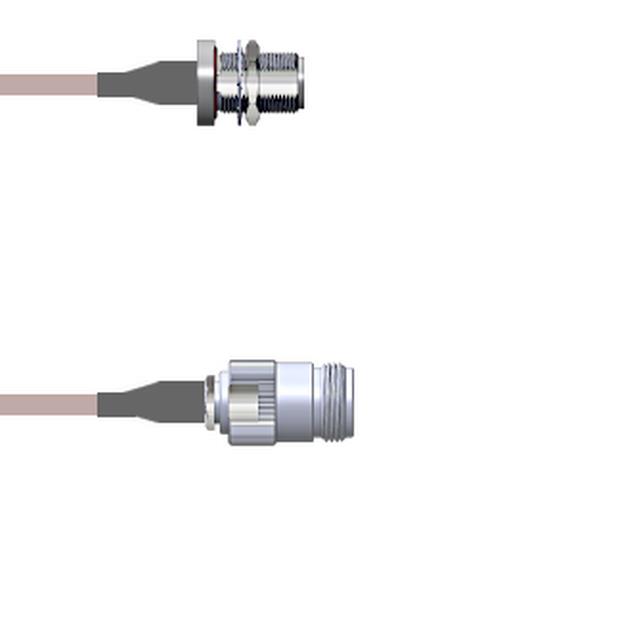

CBL ASSY NTYPE JACK TO JACK 6.6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1T0200005002M

Active

Amphenol Custom Cable

CBL ASSY NTYPE JACK TO JACK 6.6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1T0200005002M

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	6.6 ft
Length	78.7 in
Length	2 m
Overall Impedance	50 Ohms
Style	N-Type to N-Type

Q-1T0200 Series

Part	Overall Impedance	Cable Type	Features	Frequency - Max [Max]	1st Contact Gender	2nd Connector Mounting Type	Length	Length	2nd Connector	1st Connector Mounting Type	2nd Contact Gender	Color	1st Connector	1st Connector Mounting Feature	Style	Length
Amphenol Custom Cable Q-1T0200005006i	50 Ohms	RG-316	Shielded	11 GHz	Female	Free Hanging (In-Line)	152.4 mm	6 in	N-Type Jack	Panel Mount	Female	Copper	N-Type Jack	Bulkhead - Front Side Nut	N-Type to N-Type
Amphenol Custom Cable Q-1T0200005048i	50 Ohms	RG-316	Shielded	11 GHz	Female	Free Hanging (In-Line)	1200 mm	48 in	N-Type Jack	Panel Mount	Female	Copper	N-Type Jack	Bulkhead - Front Side Nut	N-Type to N-Type	4 ft
Amphenol Custom Cable Q-1T0200005024i	50 Ohms	RG-316	Shielded	11 GHz	Female	Free Hanging (In-Line)	609.6 mm	24 "	N-Type Jack	Panel Mount	Female	Copper	N-Type Jack	Bulkhead - Front Side Nut	N-Type to N-Type
Amphenol Custom Cable Q-1T0200005072i	50 Ohms	RG-316	Shielded	11 GHz	Female	Free Hanging (In-Line)	1.8 m	72 in	N-Type Jack	Panel Mount	Female	Copper	N-Type Jack	Bulkhead - Front Side Nut	N-Type to N-Type	6 ft
Amphenol Custom Cable Q-1T0200005001M	50 Ohms	RG-316	Shielded	11 GHz	Female	Free Hanging (In-Line)	1 m	39.4 in	N-Type Jack	Panel Mount	Female	Copper	N-Type Jack	Bulkhead - Front Side Nut	N-Type to N-Type	3.3 ft
Amphenol Custom Cable Q-1T0200005003i	50 Ohms	RG-316	Shielded	11 GHz	Female	Free Hanging (In-Line)	76.2 mm	3 in	N-Type Jack	Panel Mount	Female	Copper	N-Type Jack	Bulkhead - Front Side Nut	N-Type to N-Type
Amphenol Custom Cable Q-1T0200005060i	50 Ohms	RG-316	Shielded	11 GHz	Female	Free Hanging (In-Line)	1.5 m	5 '	N-Type Jack	Panel Mount	Female	Copper	N-Type Jack	Bulkhead - Front Side Nut	N-Type to N-Type	5 ft
Amphenol Custom Cable Q-1T02000032.5M	50 Ohms	RG-174	Shielded	11 GHz	Female	Free Hanging (In-Line)	2.5 m	98.4 in	N-Type Jack	Panel Mount	Female	Black	N-Type Jack	Bulkhead - Front Side Nut	N-Type to N-Type	8.2 '
Amphenol Custom Cable Q-1T0200003001M	50 Ohms	RG-174	Shielded	11 GHz	Female	Free Hanging (In-Line)	1 m	39.4 in	N-Type Jack	Panel Mount	Female	Black	N-Type Jack	Bulkhead - Front Side Nut	N-Type to N-Type	3.3 ft
Amphenol Custom Cable Q-1T0200005002M	50 Ohms	RG-316	Shielded	11 GHz	Female	Free Hanging (In-Line)	2 m	78.7 in	N-Type Jack	Panel Mount	Female	Copper	N-Type Jack	Bulkhead - Front Side Nut	N-Type to N-Type	6.6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 72.30
		25	$ 67.31
		50	$ 62.32
		100	$ 58.04
		250	$ 54.47

Description

General part information

Q-1T0200 Series

Cable Assembly Coaxial N-Type to N-Type RG-316 78.7" (2.0m) 6.6'

Documents

Technical documentation and resources

No documents available
