SLPMP14-410P128

Active

BANNER ENGINEERING

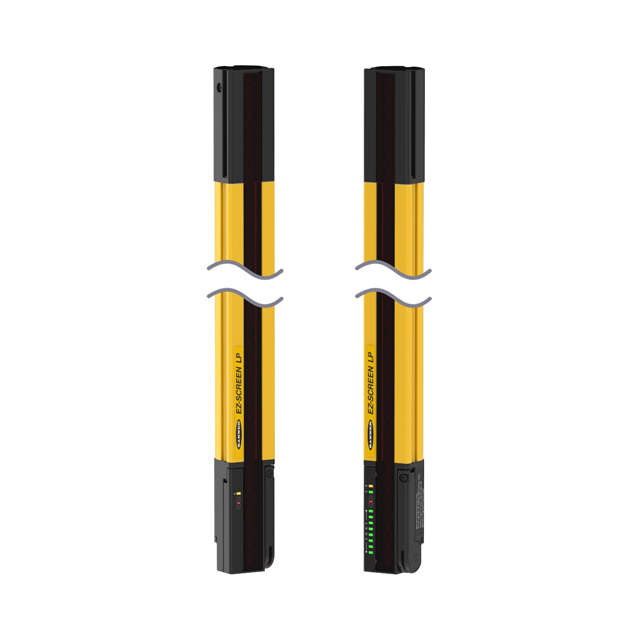

EZ-SCREEN LOW PROFILE MUTING PAIR

Search across all available documentation for this part.

Active

BANNER ENGINEERING

EZ-SCREEN LOW PROFILE MUTING PAIR

Technical Specifications

Parameters and characteristics for this part

Specification	SLPMP14-410P128

Detection Capability	14 mm
Features	Blanking, Muting Function
Ingress Protection	IP65 - Dust Tight, Water Resistant
Number of Beams	41
Operating Range [Max]	7 m
Operating Range [Min]	0.1 m
Protection	Finger
Protective Height [z]	410 mm
Voltage - Supply	24 VDC

Part	Ingress Protection	Protective Height [z]	Number of Beams	Features	Operating Range [Max]	Operating Range [Min]	Detection Capability	Protection	Voltage - Supply
BANNER ENGINEERING SLPMP14-410P128	IP65 - Dust Tight Water Resistant	410 mm	41	Blanking Muting Function	7 m	0.1 m	14 mm	Finger	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2244.01
Newark	Each	1	$ 2301.00

General part information

Light Curtain 14mm Finger Blanking, Muting Function
