ERA.0S.650.CLL

Active

LEMO

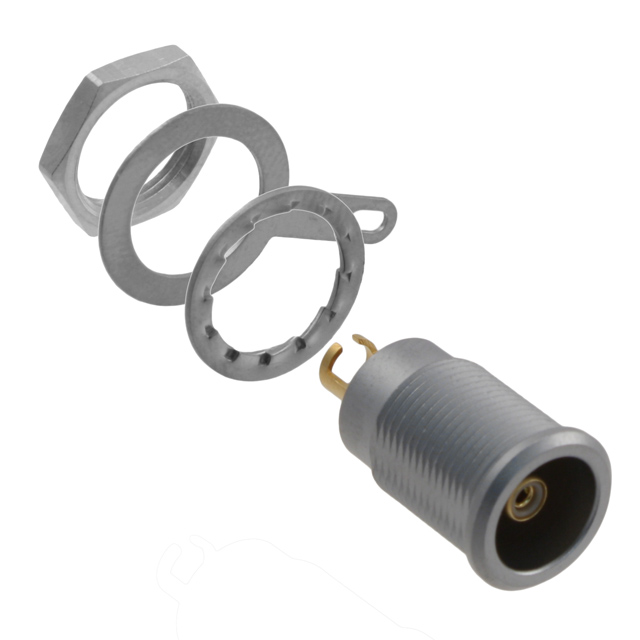

CIRCULAR PUSH PULL CONNECTORS FIXED RECEPTACLE NUT FIXING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Connectors_High Voltage,Current Catalog +2

ERA.0S.650.CLL

Active

LEMO

CIRCULAR PUSH PULL CONNECTORS FIXED RECEPTACLE NUT FIXING

Deep-Dive with AI

DocumentsDatasheet Connectors_High Voltage,Current Catalog +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.30
		10	$ 17.41
Sager	N/A	1	$ 26.52
		10	$ 25.37
		25	$ 23.14
		100	$ 21.93
		250	$ 18.29

Description

General part information

0S Series

Circular Push Pull Connectors FIXED RECEPTACLE NUT FIXING

Documents

Technical documentation and resources

Datasheet

Connectors_High Voltage,Current Catalog

Datasheet

S&B Series Catalog

Datasheet

Document

Specification	ERA.0S.650.CLL	0S Series

Backshell Material, Plating	-	Brass, Chrome
Body Finish	Chrome	Chrome
Body Material	Brass	Brass
Cable Group	178, RG-174	174A, 188A, 196A, 316B, 178B, RG-122, 174, 178, RG-174
Cable Opening	-	3.3 - 3.7 mm
Cable Opening	-	0.102 - 0.126 in
Cable Opening	-	0.13 - 0.165 in
Cable Opening	-	2.6 - 3.2 mm
Cable Opening	-	4.2 mm
Cable Opening	-	2.2 - 3.2 mm
Cable Opening	-	0.087 - 0.126 in
Center Contact Material	Beryllium Copper	Beryllium Copper, Brass
Center Contact Plating	Gold	Gold
Color	-	Silver
Connector Style	Triaxial	Coaxial, Triaxial
Connector Type	Receptacle, Female Socket	Receptacle, Female Socket, Male Pin, Plug, Male Pins, Female Sockets, Receptacle, Female Sockets
Contact Finish - Mating	-	Gold
Contact Material	-	Bronze, Brass
Contact Termination	Solder Cup	Solder, Solder Cup
Current Rating (Amps)	-	4 - 12 A
Dielectric Material	Polyetheretherketone (PEEK)	Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK)
Fastening Type	Push-Pull	Push-Pull
Features	-	Backshell
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP50	IP50
Insert Material	-	Polyetheretherketone (PEEK)
Material Flammability Rating	-	UL94 V-0
Mating Cycles	1000	1000
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut, Front and Rear Side Nut
Mounting Type	-	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Number of Positions	-	1 - 4
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	-	Keyed
Primary Material	-	Metal
Shell Finish	-	Chrome
Shell Material	-	Brass
Shell Size - Insert	-	116 - 405
Shield Termination	Solder	Clamp, Solder
Shielding	-	Shielded
Termination	-	Crimp

Part

Center Contact Plating

Housing Color

Body Material

Body Finish

Contact Termination

Fastening Type

Operating Temperature [Min]

Operating Temperature [Max]

Cable Group

Dielectric Material

Shield Termination

Connector Style

Center Contact Material

Ingress Protection

Mounting Type

Mating Cycles

Connector Type

Impedance

Contact Material

Shell Finish

Features

Shell Material

Color

Current Rating (Amps)

Orientation

Primary Material

Shielding

Material Flammability Rating

Backshell Material, Plating

Contact Finish - Mating

Shell Size - Insert

Insert Material

Cable Opening [Max] [custom]

Cable Opening [Min] [custom]

Cable Opening [Max] [custom]

Cable Opening [Min] [custom]

Number of Positions

Mounting Feature

Includes

Number of Ports

Termination

Cable Opening [Max] [custom]

Cable Opening [custom]

LEMO

PCA.0S.250.CTLC27

Gold

Silver

Brass

Chrome

Solder

Push-Pull

-55 °C

250 °C

174, 174A, 178B, 188A, 196A, 316B, RG-122

Polytetrafluoroethylene (PTFE)

Clamp

Coaxial

Beryllium Copper

IP50

Free Hanging (In-Line)

1000

Female Socket, Receptacle

50 Ohms

LEMO

FFA.0S.650.CLAC27

Gold

Silver

Brass

Chrome

Solder

Push-Pull

-55 °C

250 °C

178, RG-174

Polyetheretherketone (PEEK)

Clamp

Triaxial

Brass

IP50

Free Hanging (In-Line)

1000

Male Pin, Plug

50 Ohms

LEMO

FFA.0S.303.CLAC27

Push-Pull

-55 °C

250 °C

IP50

Free Hanging (In-Line)

Female Sockets, Male Pins, Plug

Brass, Bronze

Chrome

Backshell

Brass

Silver

7 A

Keyed

Metal

Shielded

UL94 V-0

Brass, Chrome

Gold

303

Polyetheretherketone (PEEK)

LEMO

FFA.0S.116.CLAC37

Push-Pull

-55 °C

250 °C

IP50

Free Hanging (In-Line)

Male Pins, Plug

Brass

Chrome

Backshell

Brass

Silver

12 A

Keyed

Metal

Shielded

UL94 V-0

Brass, Chrome

Gold

116

Polyetheretherketone (PEEK)

3.7 mm

0.126 in

0.146 in

3.2 mm

LEMO

ERA.0S.304.CLL

Push-Pull

-55 °C

250 °C

IP50

Female Sockets, Male Pins, Receptacle

Brass, Bronze

Chrome

Brass

Silver

7 A

Keyed

Metal

Shielded

UL94 V-0

Gold

304

Polyetheretherketone (PEEK)

Bulkhead - Rear Side Nut

LEMO

PSA.0S.250.CTLC27

Gold

Silver

Brass

Chrome

Solder

Push-Pull

-55 °C

250 °C

174, 174A, 178B, 188A, 196A, 316B, RG-122

Polytetrafluoroethylene (PTFE)

Clamp

Coaxial

Beryllium Copper

IP50

1000

Female Socket, Receptacle

50 Ohms

Bulkhead - Rear Side Nut

1 Connector, 1 Lockwasher, 1 Nut

LEMO

ERD.0S.302.CYZ

Push-Pull

-55 °C

250 °C

IP50

Female Sockets, Male Pins, Receptacle

Brass, Bronze

Chrome

Brass

Silver

10 A

Keyed

Metal

Shielded

UL94 V-0

Gold

302

Polyetheretherketone (PEEK)

Front and Rear Side Nut

Crimp

LEMO

FFB.0S.403.CLAC42

Push-Pull

-55 °C

250 °C

IP50

Free Hanging (In-Line)

Male Pins, Plug

Brass

Chrome

Backshell

Brass

Silver

4 A

Keyed

Metal

Shielded

UL94 V-0

Brass, Chrome

Gold

403

Polyetheretherketone (PEEK)

0.126 in

0.165 in

3.2 mm

4.2 mm

LEMO

FLA.0S.302.CLAC32

Push-Pull

-55 °C

250 °C

IP50

Free Hanging (In-Line), Right Angle

Female Sockets, Male Pins, Plug

Brass, Bronze

Chrome

Backshell

Brass

Silver

10 A

Keyed

Metal

Shielded

UL94 V-0

Brass, Chrome

Gold

302

Polyetheretherketone (PEEK)

2.2 mm, 3.2 mm

0.087 in, 0.126 in

LEMO

PCA.0S.303.CLLC32

Push-Pull

-55 °C

250 °C

IP50

Free Hanging (In-Line)

Female Sockets, Male Pins, Receptacle

Brass, Bronze

Chrome

Backshell

Brass

Silver

7 A

Keyed

Metal

Shielded

UL94 V-0

Brass, Chrome

Gold

303

Polyetheretherketone (PEEK)

2.2 mm, 3.2 mm

0.087 in, 0.126 in

Part	Center Contact Plating	Housing Color	Body Material	Body Finish	Contact Termination	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Dielectric Material	Shield Termination	Connector Style	Center Contact Material	Ingress Protection	Mounting Type	Mating Cycles	Connector Type	Impedance	Contact Material	Shell Finish	Features	Shell Material	Color	Current Rating (Amps)	Orientation	Primary Material	Shielding	Material Flammability Rating	Backshell Material, Plating	Contact Finish - Mating	Shell Size - Insert	Insert Material	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Number of Positions	Mounting Feature	Includes	Number of Ports	Termination	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]
LEMO PCA.0S.250.CTLC27	Gold	Silver	Brass	Chrome	Solder	Push-Pull	-55 °C	250 °C	174, 174A, 178B, 188A, 196A, 316B, RG-122	Polytetrafluoroethylene (PTFE)	Clamp	Coaxial	Beryllium Copper	IP50	Free Hanging (In-Line)	1000	Female Socket, Receptacle	50 Ohms
LEMO FFA.0S.650.CLAC27	Gold	Silver	Brass	Chrome	Solder	Push-Pull	-55 °C	250 °C	178, RG-174	Polyetheretherketone (PEEK)	Clamp	Triaxial	Brass	IP50	Free Hanging (In-Line)	1000	Male Pin, Plug	50 Ohms
LEMO FFA.0S.303.CLAC27						Push-Pull	-55 °C	250 °C						IP50	Free Hanging (In-Line)		Female Sockets, Male Pins, Plug		Brass, Bronze	Chrome	Backshell	Brass	Silver	7 A	Keyed	Metal	Shielded	UL94 V-0	Brass, Chrome	Gold	303	Polyetheretherketone (PEEK)
LEMO FFA.0S.116.CLAC37						Push-Pull	-55 °C	250 °C						IP50	Free Hanging (In-Line)		Male Pins, Plug		Brass	Chrome	Backshell	Brass	Silver	12 A	Keyed	Metal	Shielded	UL94 V-0	Brass, Chrome	Gold	116	Polyetheretherketone (PEEK)	3.7 mm	0.126 in	0.146 in	3.2 mm	1
LEMO ERA.0S.304.CLL						Push-Pull	-55 °C	250 °C						IP50			Female Sockets, Male Pins, Receptacle		Brass, Bronze	Chrome		Brass	Silver	7 A	Keyed	Metal	Shielded	UL94 V-0		Gold	304	Polyetheretherketone (PEEK)					4	Bulkhead - Rear Side Nut
LEMO PSA.0S.250.CTLC27	Gold	Silver	Brass	Chrome	Solder	Push-Pull	-55 °C	250 °C	174, 174A, 178B, 188A, 196A, 316B, RG-122	Polytetrafluoroethylene (PTFE)	Clamp	Coaxial	Beryllium Copper	IP50		1000	Female Socket, Receptacle	50 Ohms																				Bulkhead - Rear Side Nut	1 Connector, 1 Lockwasher, 1 Nut	1
LEMO ERD.0S.302.CYZ						Push-Pull	-55 °C	250 °C						IP50			Female Sockets, Male Pins, Receptacle		Brass, Bronze	Chrome		Brass	Silver	10 A	Keyed	Metal	Shielded	UL94 V-0		Gold	302	Polyetheretherketone (PEEK)					2	Front and Rear Side Nut			Crimp
LEMO FFB.0S.403.CLAC42						Push-Pull	-55 °C	250 °C						IP50	Free Hanging (In-Line)		Male Pins, Plug		Brass	Chrome	Backshell	Brass	Silver	4 A	Keyed	Metal	Shielded	UL94 V-0	Brass, Chrome	Gold	403	Polyetheretherketone (PEEK)		0.126 in	0.165 in	3.2 mm	1					4.2 mm
LEMO FLA.0S.302.CLAC32						Push-Pull	-55 °C	250 °C						IP50	Free Hanging (In-Line), Right Angle		Female Sockets, Male Pins, Plug		Brass, Bronze	Chrome	Backshell	Brass	Silver	10 A	Keyed	Metal	Shielded	UL94 V-0	Brass, Chrome	Gold	302	Polyetheretherketone (PEEK)					2						2.2 mm, 3.2 mm	0.087 in, 0.126 in
LEMO PCA.0S.303.CLLC32						Push-Pull	-55 °C	250 °C						IP50	Free Hanging (In-Line)		Female Sockets, Male Pins, Receptacle		Brass, Bronze	Chrome	Backshell	Brass	Silver	7 A	Keyed	Metal	Shielded	UL94 V-0	Brass, Chrome	Gold	303	Polyetheretherketone (PEEK)											2.2 mm, 3.2 mm	0.087 in, 0.126 in
