General part information

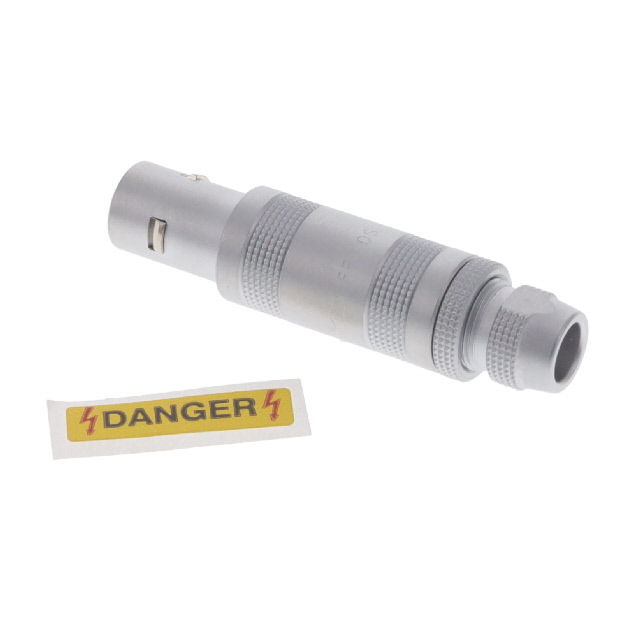

1 Position Circular Connector Plug, Male Pins Solder Cup
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | FFB.0S.403.CLAC42 | FFB.0S Series |
|---|---|---|
| Accessory Type | - | Back-Nut, Collet |
| Backshell Material, Plating | Brass, Chrome | Brass, Chrome |
| Cable Opening | - | 0.051 - 0.067 in |
| Cable Opening | - | 1.3 - 1.7 mm |
| Cable Opening | - | 2.2 - 3.2 mm |
| Cable Opening | - | 0.087 - 0.126 in |
| Cable Opening [Max] [custom] | 4.2 mm | 4.2 mm |
| Cable Opening [Max] [custom] | 0.165 in | 0.165 in |
| Cable Opening [Min] [custom] | 0.126 in | 0.126 in |
| Cable Opening [Min] [custom] | 3.2 mm | 3.2 mm |
| Color | Silver | Silver |
| Connector Type | Plug, Male Pins | Female Sockets, Plug, Insert, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Bronze, Brass |
| Current Rating (Amps) | 4 A | 4 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Backshell | Backshell, Insert Only, Requires Shell |
| For Use With/Related Products | - | 0S Series Connector |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK) |
| Material | - | Brass |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 1 | 1 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 403 | 403 |
| Shielding | Shielded | Shielded |
SAFETY RING FOR FFB.0S.
| Part | For Use With/Related Products | Color | Accessory Type | Material | Ingress Protection | Shell Material | Backshell Material, Plating | Shell Finish | Primary Material | Mounting Type | Orientation | Shielding | Fastening Type | Contact Finish - Mating | Features | Number of Positions | Insert Material | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert | Connector Type | Contact Material | Current Rating (Amps) | Material Flammability Rating | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO FFB.0S.140.LC | 0S Series Connector | Silver | Back-Nut, Collet | Brass | ||||||||||||||||||||||||||||
Silver | IP50 | Brass | Brass, Chrome | Chrome | Metal | Free Hanging (In-Line) | Keyed | Shielded | Push-Pull | Gold | Backshell | 1 | Polytetrafluoroethylene (PTFE) | -55 °C | 250 °C | 403 | Female Sockets, Plug | Bronze | 4 A | |||||||||||||
LEMO FFB.0S.403.ZLA | IP50 | Keyed | Shielded | Gold | Insert Only, Requires Shell | 1 | Polyetheretherketone (PEEK) | -55 °C | 250 °C | 403 | Insert, Male Pins | Brass | 4 A | UL94 V-0 | ||||||||||||||||||
Silver | IP50 | Brass | Brass, Chrome | Chrome | Metal | Free Hanging (In-Line) | Keyed | Shielded | Push-Pull | Gold | Backshell | 1 | Polytetrafluoroethylene (PTFE) | -55 °C | 250 °C | 403 | Male Pins, Plug | Brass | 4 A | |||||||||||||
Silver | IP50 | Brass | Brass, Chrome | Chrome | Metal | Free Hanging (In-Line) | Keyed | Shielded | Push-Pull | Gold | Backshell | 1 | Polytetrafluoroethylene (PTFE) | -55 °C | 250 °C | 403 | Male Pins, Plug | Brass | 4 A | |||||||||||||
Silver | IP50 | Brass | Brass, Chrome | Chrome | Metal | Free Hanging (In-Line) | Keyed | Shielded | Push-Pull | Gold | Backshell | 1 | Polyetheretherketone (PEEK) | -55 °C | 250 °C | 403 | Male Pins, Plug | Brass | 4 A | UL94 V-0 | 0.051 in, 0.067 in | 1.3 mm, 1.7 mm | ||||||||||
LEMO FFB.0S.403.ZTA | IP50 | Keyed | Shielded | Gold | Insert Only, Requires Shell | 1 | Polytetrafluoroethylene (PTFE) | -55 °C | 250 °C | 403 | Insert, Male Pins | Brass | 4 A | |||||||||||||||||||
Silver | IP50 | Brass | Brass, Chrome | Chrome | Metal | Free Hanging (In-Line) | Keyed | Shielded | Push-Pull | Gold | Backshell | 1 | Polyetheretherketone (PEEK) | -55 °C | 250 °C | 403 | Male Pins, Plug | Brass | 4 A | UL94 V-0 | 0.126 in | 4.2 mm | 0.165 in | 3.2 mm | ||||||||
Silver | IP50 | Brass | Brass, Chrome | Chrome | Metal | Free Hanging (In-Line) | Keyed | Shielded | Push-Pull | Gold | Backshell | 1 | Polytetrafluoroethylene (PTFE) | -55 °C | 250 °C | 403 | Male Pins, Plug | Brass | 4 A | 2.2 mm, 3.2 mm | 0.087 in, 0.126 in | |||||||||||
Silver | IP50 | Brass | Brass, Chrome | Chrome | Metal | Free Hanging (In-Line) | Keyed | Shielded | Push-Pull | Gold | Backshell | 1 | Polytetrafluoroethylene (PTFE) | -55 °C | 250 °C | 403 | Male Pins, Plug | Brass | 4 A | 0.126 in | 4.2 mm | 0.165 in | 3.2 mm |
