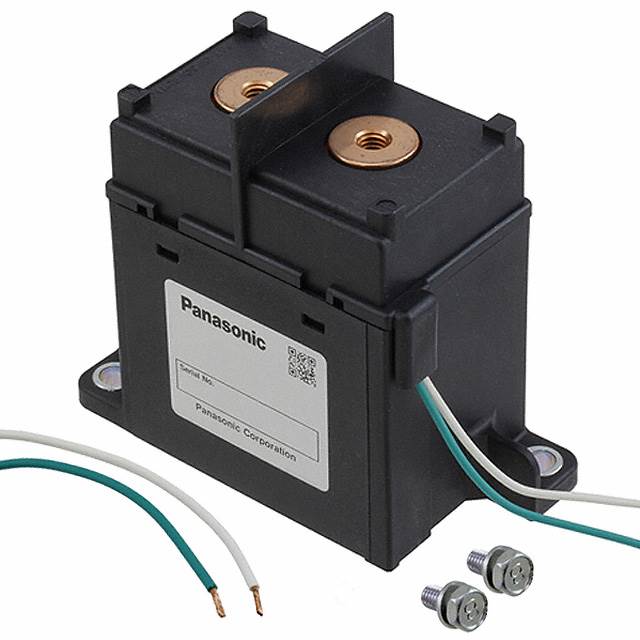

AEP17012
Panasonic Electric Works
RELAY GEN PURPOSE SPST 200A 12V
Deep-Dive with AI
Search across all available documentation for this part.
AEP17012
Panasonic Electric Works
RELAY GEN PURPOSE SPST 200A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AEP17012 |
|---|---|
| Coil Current | 500 mA |
| Coil Resistance | 24 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 200 A |
| Load - Max Switching | 55400 VA |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 50 ms |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 30 ms |
| Switching Voltage | 400 VDC, 277 VAC |
| Termination Style | Screw Terminal, Wire Leads |
AEP170 Series
| Part | Contact Rating (Current) | Operating Temperature [Min] | Operating Temperature [Max] | Relay Type | Must Release Voltage | Termination Style | Coil Resistance | Switching Voltage | Must Operate Voltage | Operate Time | Coil Current | Contact Form | Coil Voltage | Mounting Type | Load - Max Switching | Coil Type | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panasonic Electric Works | 200 A | -40 °C | 80 C | General Purpose | 2 VDC | Screw Terminal Wire Leads | 96 Ohms | 277 VAC 400 VDC | 18 VDC | 50 ms | 250 mA | SPST-NO (1 Form A) | 24 VDC | Chassis Mount | 55400 VA | Non Latching | 30 ms |
Panasonic Electric Works | 200 A | -40 °C | 80 C | General Purpose | 1 VDC | Screw Terminal Wire Leads | 24 Ohms | 277 VAC 400 VDC | 9 VDC | 50 ms | 500 mA | SPST-NO (1 Form A) | 12 VDC | Chassis Mount | 55400 VA | Non Latching | 30 ms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 338.95 | |
| 10 | $ 316.35 | |||
| 25 | $ 305.06 | |||
Description
General part information
AEP170 Series
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Chassis Mount
