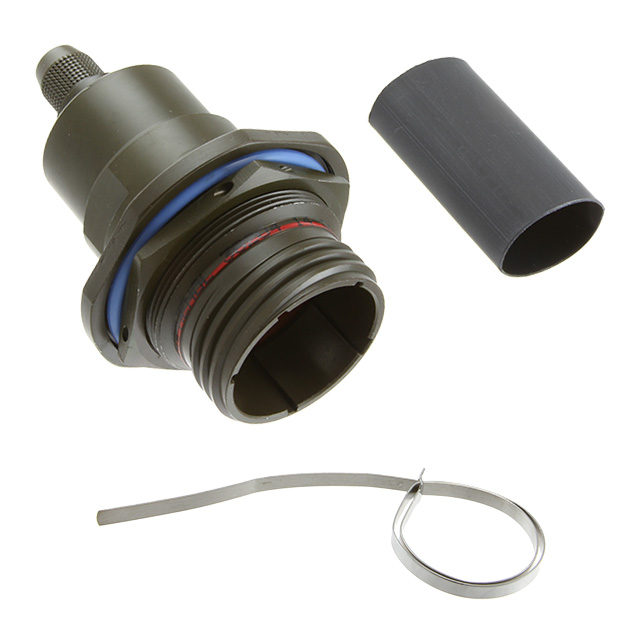

KIT38204

Active

Amphenol Socapex

CONN MOD JACK 8P8C SHIELDED

Deep-Dive with AI

Search across all available documentation for this part.

KIT38204

Active

Amphenol Socapex

CONN MOD JACK 8P8C SHIELDED

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 214.78
		10	$ 168.14
		25	$ 153.42
		50	$ 143.51

Description

General part information

KIT38 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Shielded Cat5e

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	KIT38204	KIT38 Series

Cable Type	-	Round Cable, Not Specified
Color	-	Olive
Connector Type	Jack	Jack, Plug
Features	Circular Threaded Coupling, Heat Shrink Tubing	Circular Threaded Coupling, Heat Shrink Tubing
Housing Material	-	Aluminum
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
LED Color	Does Not Contain LED	Does Not Contain LED
Length	-	54 mm
Length	-	2.126 "
Mounting Type	Bulkhead, Panel Mount	Bulkhead, Panel Mount, Panel Mount, Square Flange
Number of Ports	1	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Straight	Straight
Ratings	Cat5e	Cat5e
Shielding	Shielded	Shielded
Tab Direction	User Selectable	User Selectable
Termination	Solder	Solder, PC Board, Solder, IDC

KIT38 Series

CONN MOD JACK 8P8C SHIELDED

Part	Ingress Protection	Tab Direction	Shielding	Orientation	Termination	Features	LED Color	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Ratings	Connector Type	Mounting Type	Number of Positions/Contacts	Cable Type	Color	Housing Material	Length [x]	Length [x]
Amphenol Socapex KIT38204NI	IP68 - Dust Tight, Waterproof	User Selectable	Shielded	Straight	Solder	Circular Threaded Coupling, Heat Shrink Tubing	Does Not Contain LED	1	85 °C	-40 °C	1	Cat5e	Jack	Bulkhead, Panel Mount	8p8c (RJ45, Ethernet)
Amphenol Socapex KIT38082	IP68 - Dust Tight, Waterproof	User Selectable	Shielded	Straight	PC Board, Solder	Circular Threaded Coupling, Heat Shrink Tubing	Does Not Contain LED	1	85 °C	-40 °C	1		Jack	Panel Mount, Square Flange	8p8c (RJ45, Ethernet)
Amphenol Socapex KIT38081	IP68 - Dust Tight, Waterproof		Shielded		IDC	Circular Threaded Coupling						Cat5e	Plug		8p8c (RJ45, Ethernet)	Round Cable, Not Specified	Olive	Aluminum	54 mm	2.126 "
Amphenol Socapex KIT38204	IP68 - Dust Tight, Waterproof	User Selectable	Shielded	Straight	Solder	Circular Threaded Coupling, Heat Shrink Tubing	Does Not Contain LED	1	85 °C	-40 °C	1	Cat5e	Jack	Bulkhead, Panel Mount	8p8c (RJ45, Ethernet)
Amphenol Socapex KIT38082NI	IP68 - Dust Tight, Waterproof	User Selectable	Shielded	Straight	PC Board, Solder	Circular Threaded Coupling, Heat Shrink Tubing	Does Not Contain LED	1	85 °C	-40 °C	1		Jack	Panel Mount, Square Flange	8p8c (RJ45, Ethernet)
Amphenol Socapex KIT38204ZC	IP68 - Dust Tight, Waterproof	User Selectable	Shielded	Straight	Solder	Circular Threaded Coupling, Heat Shrink Tubing	Does Not Contain LED	1	85 °C	-40 °C	1	Cat5e	Jack	Bulkhead, Panel Mount	8p8c (RJ45, Ethernet)
