925451-1

Active

TE Connectivity AMP Connectors

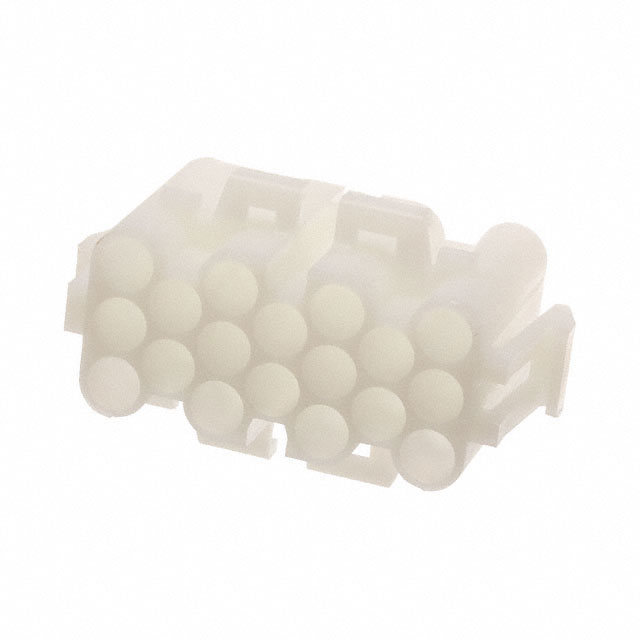

CONN PLUG HSG 18POS 5.20MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 18POS 5.20MM

Technical Specifications

Parameters and characteristics for this part

CONN PLUG HSG 18POS 5.20MM

Part	Color	Number of Rows	Contact Type	Note	Mounting Type	Insulation Material	Fastening Type	Contact Termination	Number of Positions	Pitch [x]	Pitch [x]	Row Spacing [Max]	Row Spacing [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type
TE Connectivity AMP Connectors 925451-1	Natural	3	Female Socket	Contacts Not Included	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Latch Lock	Crimp	18	5.2 mm	0.205 in	0.236 in	6 mm	105 ░C	-55 °C	Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Rectangular Connectors - Housings Plug Natural 0.205" (5.20mm)
