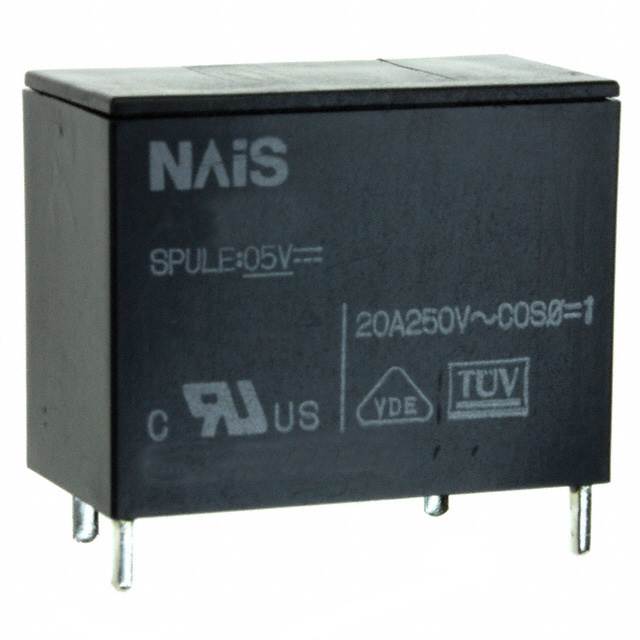

ALF1P05
ActivePanasonic Electric Works
RELAY GEN PURPOSE SPST 20A 5V
Deep-Dive with AI
Search across all available documentation for this part.
ALF1P05
ActivePanasonic Electric Works
RELAY GEN PURPOSE SPST 20A 5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ALF1P05 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 180 mA |
| Coil Resistance | 27.8 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 20 A |
| Load - Max Switching | 5000 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.5 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 15 ms |
| Switching Voltage | 250 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 3.25 | |
| 10 | $ 3.04 | |||
| 25 | $ 2.71 | |||
| 50 | $ 2.57 | |||
| 100 | $ 2.43 | |||
| 250 | $ 2.16 | |||
| 500 | $ 2.03 | |||
| 1000 | $ 1.89 | |||
| 5000 | $ 1.83 | |||
Description
General part information
ALF1P0 Series
General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
