MH10-8FLK

Active

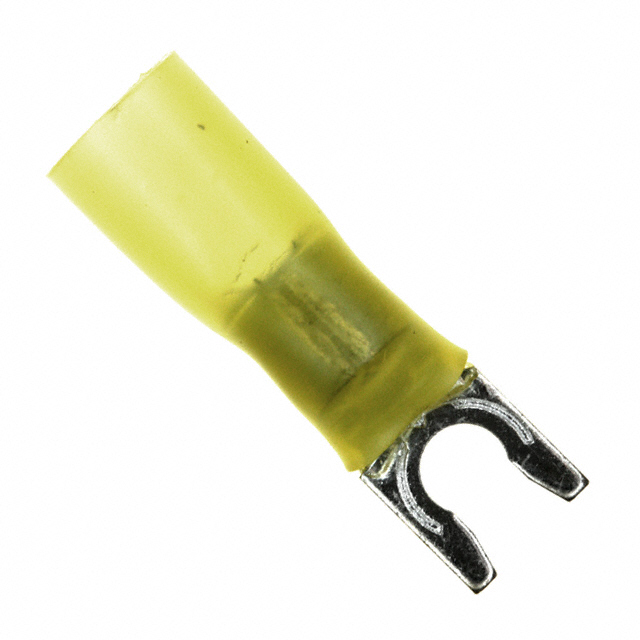

LOCKING FORK BRAZED SEAM HEAT SHRINK TERMINAL (BULK)

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MH10-8FLK

Active

LOCKING FORK BRAZED SEAM HEAT SHRINK TERMINAL (BULK)

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 1.92
Newark	Each	250	$ 2.14
		500	$ 1.99
		1000	$ 1.87

Description

General part information

MH10 Series

Yellow 8 Stud Spade Terminal Connector Crimp 10-12 AWG

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MH10-8FLK	MH10 Series

Color	Yellow	Yellow
Contact Finish	Tin	Tin
Contact Material	ETP, Copper	ETP, Copper
Features	Brazed Seam	Brazed Seam
Insulation	Insulated with Heat Shrink	Insulated with Heat Shrink, Fully Insulated Heat Shrink
Length - Overall	25.4 mm	25.4 mm
Length - Overall	-	30.48 mm
Length - Overall [x]	1 in	1 - 1.2 in
Length - Ring Center to Termination	-	0.3 in
Length - Ring Center to Termination	-	7.62 mm
Length - Ring Center to Termination [x]	0.16 in	0.16 in
Length - Ring Center to Termination [x]	4.06 mm	4.06 mm
Length - Termination	-	16.51 mm
Length - Termination	-	0.65 in
Length - Termination [custom]	16.26 mm	16.26 mm
Length - Termination [custom]	0.64 in	0.64 in
Material - Insulation [custom]	Polyolefin	Polyolefin
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Wire Entries	-	2
Stud/Tab Size	8 Stud	8 Stud, 3/8 Stud
Stud/Tab Size	-	0.25 Stud
Terminal Type	Snap, Spring	Snap, Spring, Butt Splice, Inline, Individual Openings, Circular
Termination	Crimp	Crimp, Screw
Thickness	-	0.04 in
Thickness	-	1.02 mm
Width - Outer Edges	-	14.99 mm
Width - Outer Edges	-	0.59 in
Width - Outer Edges [y]	8.13 mm	8.13 - 10.92 mm
Width - Outer Edges [y]	0.32 in	0.32 - 0.43 in
Wire Gauge [Max]	12 AWG	12 AWG
Wire Gauge [Min]	10 AWG	10 AWG

MH10 Series

CONN SPADE TERM 10-12AWG #8 25PC

Part	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Termination	Features	Insulation	Contact Finish	Length - Termination [custom]	Length - Termination [custom]	Length - Overall	Length - Overall [x]	Material - Insulation [custom]	Mounting Type	Terminal Type	Stud/Tab Size	Wire Gauge [Max]	Wire Gauge [Min]	Color	Contact Material	Number of Wire Entries	Length - Overall [x]	Thickness	Thickness	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size	Length - Ring Center to Termination	Length - Ring Center to Termination	Length - Termination [x]	Length - Termination [x]
3M MH10-8FLX-BOTTLE	8.13 mm	0.32 in	0.16 in	4.06 mm	Crimp	Brazed Seam	Insulated with Heat Shrink	Tin	16.26 mm	0.64 in	25.4 mm	1 in	Polyolefin	Free Hanging (In-Line)	Snap, Spring	8 Stud	12 AWG	10 AWG	Yellow	Copper, ETP
3M MH10-8FLK	8.13 mm	0.32 in	0.16 in	4.06 mm	Crimp	Brazed Seam	Insulated with Heat Shrink	Tin	16.26 mm	0.64 in	25.4 mm	1 in	Polyolefin	Free Hanging (In-Line)	Snap, Spring	8 Stud	12 AWG	10 AWG	Yellow	Copper, ETP
3M MH10BCX-BOTTLE					Crimp		Fully Insulated Heat Shrink								Butt Splice, Individual Openings, Inline		12 AWG	10 AWG	Yellow		2
3M MH10-38RK					Crimp	Brazed Seam	Insulated with Heat Shrink	Tin				1.2 in	Polyolefin	Free Hanging (In-Line)	Circular	3/8 Stud	12 AWG	10 AWG	Yellow	Copper, ETP		30.48 mm	0.04 in	1.02 mm	14.99 mm	0.59 in
3M MH10-14RK					Crimp	Brazed Seam	Insulated with Heat Shrink	Tin				1.2 in	Polyolefin	Free Hanging (In-Line)	Circular		12 AWG	10 AWG	Yellow	Copper, ETP		30.48 mm	0.04 in	1.02 mm	14.99 mm	0.59 in	0.25 Stud
3M MH10-14FLX-BOTTLE	10.92 mm	0.43 "			Screw	Brazed Seam	Insulated with Heat Shrink	Tin				1.2 in	Polyolefin	Free Hanging (In-Line)	Snap, Spring		12 AWG	10 AWG	Yellow	Copper, ETP		30.48 mm					0.25 Stud	0.3 in	7.62 mm	16.51 mm	0.65 in
