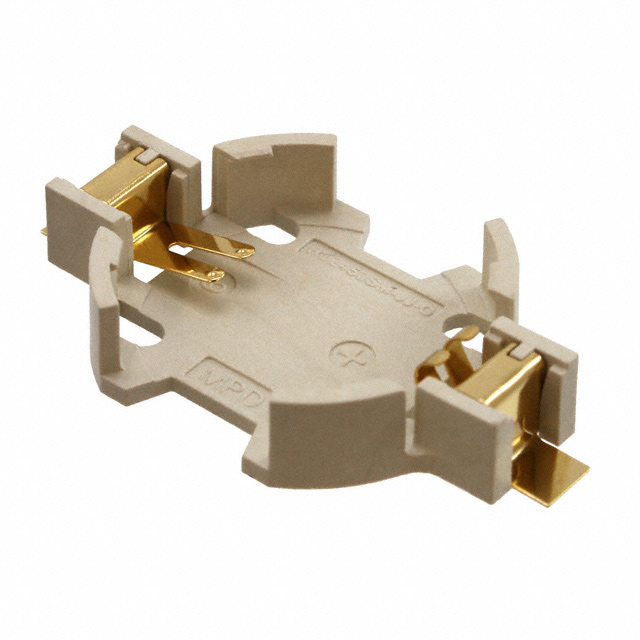

BU2450SM-JJ-GTR
ActiveMPD (Memory Protection Devices)
BATTERY HOLDER COIN 24.5MM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsCoin Cell Guide
BU2450SM-JJ-GTR
ActiveMPD (Memory Protection Devices)
BATTERY HOLDER COIN 24.5MM SMD
Deep-Dive with AI
DocumentsCoin Cell Guide
Technical Specifications
Parameters and characteristics for this part
| Specification | BU2450SM-JJ-GTR |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size | 24.5 mm |
| Battery Series | 2450 |
| Battery Type, Function | Holder, Coin Cell |
| Height Above Board | 0.276 in |
| Height Above Board | 7.01 mm |
| Mounting Type | PCB, Surface Mount |
| Number of Cells | 1 |
| Operating Temperature [Max] | 315 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Holder (Open) |
| Termination Style | SMD (SMT) Tab |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.67 | |
| 10 | $ 1.39 | |||
| 50 | $ 1.22 | |||
| 100 | $ 1.15 | |||
| Digi-Reel® | 1 | $ 1.67 | ||
| 10 | $ 1.39 | |||
| 50 | $ 1.22 | |||
| 100 | $ 1.15 | |||
| Tape & Reel (TR) | 250 | $ 1.07 | ||
| 500 | $ 1.01 | |||
| 750 | $ 0.98 | |||
| 1250 | $ 0.94 | |||
| 1750 | $ 0.92 | |||
| 2500 | $ 0.89 | |||
| 6250 | $ 0.83 | |||
| 12500 | $ 0.78 | |||
Description
General part information
BU2450SM Series
Battery Holder (Open) Coin, 24.5mm 1 Cell SMD (SMT) Tab
