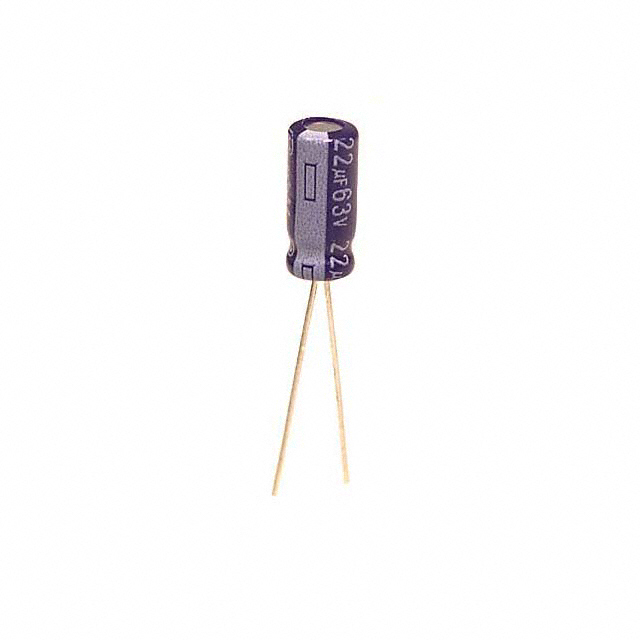

ECA-1JM220

Active

Panasonic Industrial Automation Sales

CAP ALUM 22UF 20% 63V RADIAL TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECA-xxM Spec Sheet Datasheet

ECA-1JM220

Active

Panasonic Industrial Automation Sales

CAP ALUM 22UF 20% 63V RADIAL TH

Deep-Dive with AI

DocumentsECA-xxM Spec Sheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECA-1JM220

Applications	General Purpose
Capacitance	22 µF
Height - Seated (Max) [Max] [z]	12 mm
Height - Seated (Max) [Max] [z]	0.472 "
Lead Spacing	2 mm
Lead Spacing	0.079 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	178.5 mA
Ripple Current @ Low Frequency	105 mA
Size / Dimension [diameter]	5 mm
Size / Dimension [diameter]	0.197 "
Tolerance	20 %
Voltage - Rated	63 V

ECA-1JM Series

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ High Frequency	Lifetime @ Temp.	Lead Spacing	Lead Spacing	Mounting Type	Tolerance	Package / Case	Ripple Current @ Low Frequency	Polarization	Applications
Panasonic Industrial Automation Sales ECA-1JM221	10 mm	0.394 in	17 mm	0.669 in	220 µF	63 V	85 °C	-40 °C	765 mA	2000 Hrs	5 mm	0.197 in	Through Hole	20 %	Radial Can	450 mA	Polar	General Purpose
Panasonic Industrial Automation Sales ECA-1JM470	6.3 mm	0.248 in	12.2 mm	0.48 "	47 µF	63 V	85 °C	-40 °C	272 mA	2000 Hrs	2.5 mm	0.098 in	Through Hole	20 %	Radial Can	160 mA	Polar	General Purpose
Panasonic Industrial Automation Sales ECA-1JM330B	6.3 mm	0.248 in	12.2 mm	0.48 "	33 ÁF	63 V	85 °C	-40 °C	221 mA	2000 Hrs	5 mm	0.197 in	Through Hole	20 %	Radial Can	130 mA	Polar	General Purpose
Panasonic Industrial Automation Sales ECA-1JM331B	10 mm	0.394 in	22 mm	0.866 in	330 µF	63 V	85 °C	-40 °C	935 mA	2000 Hrs	5 mm	0.197 in	Through Hole	20 %	Radial Can		Polar	General Purpose
Panasonic Industrial Automation Sales ECA-1JM470I	6.3 mm	0.248 in	12.2 mm	0.48 "	47 µF	63 V	85 °C	-40 °C	272 mA	2000 Hrs	2.5 mm	0.098 in	Through Hole	20 %	Radial Can	160 mA	Polar	General Purpose
Panasonic Industrial Automation Sales ECA-1JM470B	6.3 mm	0.248 in	12.2 mm	0.48 "	47 µF	63 V	85 °C	-40 °C	272 mA	2000 Hrs	5 mm	0.197 in	Through Hole	20 %	Radial Can	160 mA	Polar	General Purpose
Panasonic Industrial Automation Sales ECA-1JM220	5 mm	0.197 "	12 mm	0.472 "	22 µF	63 V	85 °C	-40 °C	178.5 mA	2000 Hrs	2 mm	0.079 in	Through Hole	20 %	Radial Can	105 mA	Polar	General Purpose
Panasonic Industrial Automation Sales ECA-1JM100I	5 mm	0.197 "	12 mm	0.472 "	10 µF	63 V	85 °C	-40 °C	119 mA	2000 Hrs	2.5 mm	0.098 in	Through Hole	20 %	Radial Can	70 mA	Polar	General Purpose
Panasonic Industrial Automation Sales ECA-1JM330	6.3 mm	0.248 in	12.2 mm	0.48 "	33 ÁF	63 V	85 °C	-40 °C	221 mA	2000 Hrs	2.5 mm	0.098 in	Through Hole	20 %	Radial Can	130 mA	Polar	General Purpose
Panasonic Industrial Automation Sales ECA-1JM100B	5 mm	0.197 "	12 mm	0.472 "	10 µF	63 V	85 °C	-40 °C	119 mA	2000 Hrs	5 mm	0.197 in	Through Hole	20 %	Radial Can	70 mA	Polar	General Purpose

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.22
		10	$ 0.13
		50	$ 0.10
		200	$ 0.07
		600	$ 0.06
		1000	$ 0.06
		2600	$ 0.05
		5000	$ 0.05

Description

General part information

ECA-1JM Series

22 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C

Documents

Technical documentation and resources

ECA-xxM Spec Sheet

Datasheet
