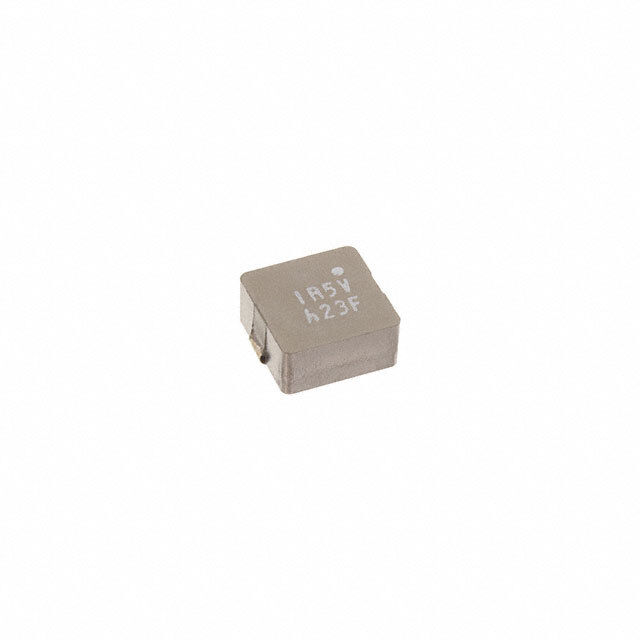

MPCV1260L1R0 - MPCV1260L1R5

MPCV1260L1R0

Active
KEMET

INDUCTOR: WIRE; SMD; 1UH; IOPER: 32A; 1.5MΩ; ±20%; ISAT: 42A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMPCV1260L1R0 SpecKEM_L9011_MPCV.pdf+3
MPCV1260L1R0 - MPCV1260L1R5

MPCV1260L1R0

Active
KEMET

INDUCTOR: WIRE; SMD; 1UH; IOPER: 32A; 1.5MΩ; ±20%; ISAT: 42A

Deep-Dive with AI

DocumentsMPCV1260L1R0 SpecKEM_L9011_MPCV.pdf+3

Technical Specifications

Parameters and characteristics for this part

SpecificationMPCV1260L1R0
Current - Saturation (Isat)42 A
Current Rating (Amps)32 A
DC Resistance (DCR) [Max]1.65 mOhm
Height - Seated (Max) [Max]0.236 in
Height - Seated (Max) [Max]6 mm
Inductance1 µH
Inductance Frequency - Test100 kHz
Material - CoreMetal Composite
Mounting TypeSurface Mount
Operating Temperature [Max]155 °C
Operating Temperature [Min]-55 °C
Package / CaseNonstandard
RatingsAEC-Q200
ShieldingShielded
Size / Dimension [x]14.5 mm
Size / Dimension [x]0.571 in
Size / Dimension [y]0.492 "
Size / Dimension [y]12.5 mm
Tolerance20 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 3.12
10$ 2.43
25$ 2.19
50$ 2.03
100$ 1.88
Digi-Reel® 1$ 3.12
10$ 2.43
25$ 2.19
50$ 2.03
100$ 1.88
Tape & Reel (TR) 600$ 1.78
NewarkEach (Supplied on Full Reel) 1$ 1.88
2000$ 1.79
4000$ 1.66
8000$ 1.55
12000$ 1.49
20000$ 1.47
TMEN/A 100$ 1.97
500$ 1.92

Description

General part information

MPCV1260 Series

1 µH Shielded Inductor 32 A 1.65mOhm Max Nonstandard
