73070-C-12

Obsolete

Pomona Electronics

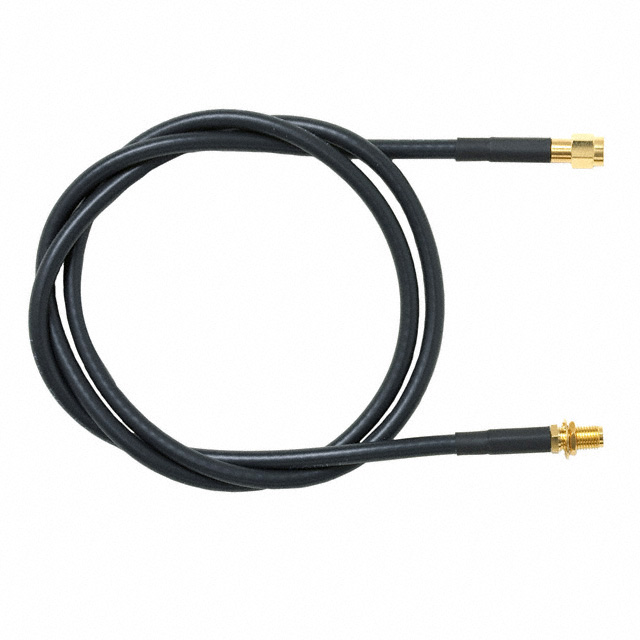

CBL ASSY SMA JACK TO PLUG 12"

Search across all available documentation for this part.

Obsolete

Pomona Electronics

CBL ASSY SMA JACK TO PLUG 12"

Technical Specifications

Parameters and characteristics for this part

Specification	73070-C-12

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-58C
Color	Black
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	12 "
Length	304.8 mm
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Overall Impedance	50 Ohms
Style	SMA to SMA

Part	Style	1st Connector	2nd Connector Mounting Type	Frequency - Max [Max]	1st Connector Mounting Type	Cable Type	Cable Impedance	1st Contact Gender	Overall Impedance	2nd Connector	1st Connector Mounting Feature	Features	Color	2nd Contact Gender	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Length
Pomona Electronics 73070-BB-48	SMA to SMA	SMA Jack	Free Hanging (In-Line)	3 GHz	Panel Mount	RG-316	50 Ohms	Female	50 Ohms	SMA Plug	Bulkhead - Front Side Nut	Shielded	Copper	Male	-65 ░C	165 °C	1200 mm	4 ft	48 in
Pomona Electronics 73070-C-12	SMA to SMA	SMA Jack	Free Hanging (In-Line)	3 GHz	Panel Mount	RG-58C	50 Ohms	Female	50 Ohms	SMA Plug	Bulkhead - Front Side Nut	Shielded	Black	Male	-65 ░C	165 °C	304.8 mm		12 "
Pomona Electronics 73070-C-60	SMA to SMA	SMA Jack	Free Hanging (In-Line)	3 GHz	Panel Mount	RG-58C	50 Ohms	Female	50 Ohms	SMA Plug	Bulkhead - Front Side Nut	Shielded	Black	Male	-65 ░C	165 °C	1.5 m	5 ft	5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Assembly Coaxial SMA to SMA RG-58C 12.00" (304.80mm)
