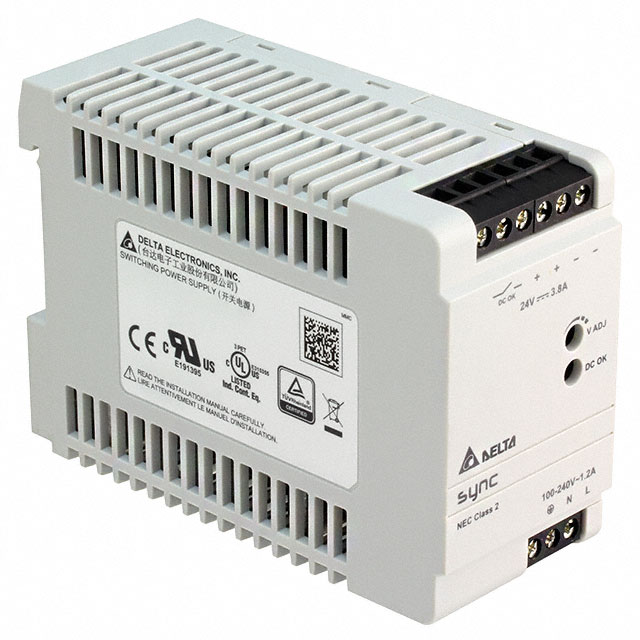

DRS-24V100W1NR

Active

Delta Electronics

AC/DC POWER SUPPLY SINGLE-OUT 24V 4A 100W 9-PIN CARTON

Search across all available documentation for this part.

Active

Delta Electronics

AC/DC POWER SUPPLY SINGLE-OUT 24V 4A 100W 9-PIN CARTON

Technical Specifications

Parameters and characteristics for this part

Specification	DRS-24V100W1NR

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	cURus, TUV, CB, cULus, CE
Current - Output (Max) [Max]	3.8 A
Efficiency	89 %
Features	PFC, Universal Input, Load Sharing, Adjustable Output, IP20
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	100 W
Size / Dimension [x]	100 mm
Size / Dimension [x]	3.94 in
Size / Dimension [y]	1.77 "
Size / Dimension [y]	45 mm
Size / Dimension [z]	75 mm
Size / Dimension [z]	2.95 "
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Efficiency	Current - Output (Max) [Max]	Voltage - Output 1	Features	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Power (Watts)	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Applications
Delta Electronics DRS-24V100W1NR	AC	-20 °C	70 °C	CB CE cULus cURus TUV	89 %	3.8 A	24 V	Adjustable Output IP20 Load Sharing PFC Universal Input	3000 V	1.77 "	75 mm	100 mm	2.95 "	3.94 in	45 mm	1	100 W	85 VAC	264 VAC	ITE (Commercial)
