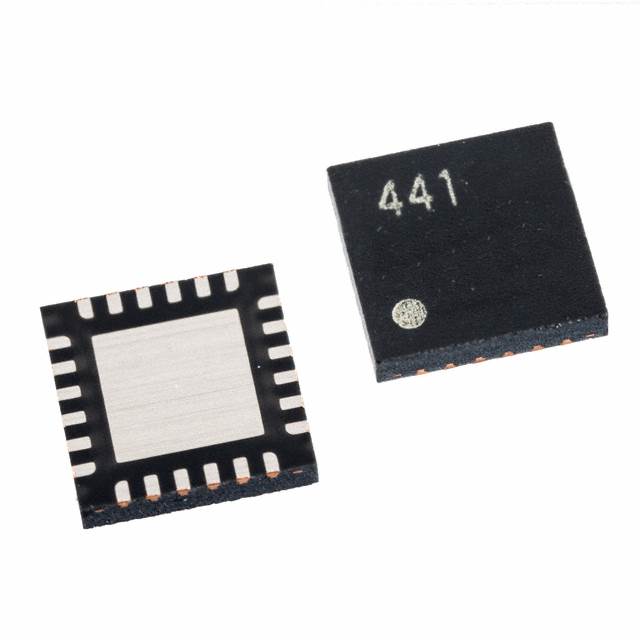

AN44150A-VB

Obsolete

Panasonic Industrial Automation Sales

IC MOTOR DRIVER 6V-36V 24HQFN

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

IC MOTOR DRIVER 6V-36V 24HQFN

Technical Specifications

Parameters and characteristics for this part

Specification	AN44150A-VB

Applications	General Purpose
Current - Output	1.5 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	PWM
Motor Type - AC, DC	Brushless DC (BLDC)
Mounting Type	Surface Mount
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Half Bridge (3)
Package / Case	24-WFQFN Exposed Pad
Supplier Device Package	24-HQFN (4x4)
Technology	Power MOSFET
Voltage - Load [Max]	36 V
Voltage - Load [Min]	6 V
Voltage - Supply [Max]	36 V
Voltage - Supply [Min]	6 V

Part	Motor Type - AC, DC	Function	Interface	Supplier Device Package	Mounting Type	Current - Output	Package / Case	Technology	Voltage - Load [Max]	Voltage - Load [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration
Panasonic Industrial Automation Sales AN44150A-VB	Brushless DC (BLDC)	Driver - Fully Integrated Control and Power Stage	PWM	24-HQFN (4x4)	Surface Mount	1.5 A	24-WFQFN Exposed Pad	Power MOSFET	36 V	6 V	6 V	36 V	General Purpose	80 °C	-40 °C	Half Bridge (3)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Motor Driver Power MOSFET PWM 24-HQFN (4x4)
