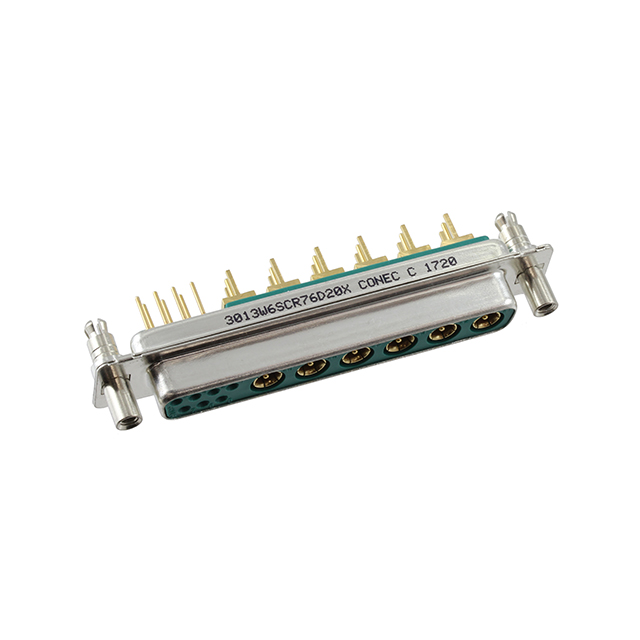

3013W6SCR76D20X

Active

Amphenol CONEC

CONN D-SUB RCPT 13P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

3013W6SCR76D20X

Active

Amphenol CONEC

CONN D-SUB RCPT 13P PNL MNT SLDR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3013W6SCR76D20X

Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Flange Feature	4-40
Mounting Type	Through Hole, Panel Mount
Number of Positions	13
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	13W6, 4 (DC, C)
Termination	Solder

3013W6S Series

Part	Connector Type	Material Flammability Rating	Backset Spacing	Backset Spacing	Color	Connector Style	Dielectric Material	Contact Material	Features	Number of Rows	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Number of Positions	Shell Size, Connector Layout	Contact Finish	Mounting Type	Current Rating (Amps)	Voltage Rating	Wire Gauge	Contact Finish Thickness
Amphenol CONEC 3013W6SAT99P20X	Receptacle Female Sockets	UL94 V-0	0.283 in	7.2 mm	Green	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Mounting Brackets	2	Solder	-55 °C	125 °C	4-40	13	13W6 4 (DC C)	Gold	Through Hole Right Angle	7.5 A	250 VDC
Amphenol CONEC 3013W6SAR71E20X	Receptacle Female Sockets
Amphenol CONEC 3013W6SAM99A30X	Receptacle Female Sockets	UL94 V-0			Green	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy		2		-55 °C	125 °C	Cable Side	13	13W6 4 (DC C)	Gold	Free Hanging (In-Line)	7.5 A	250 VDC	20 AWG	Flash
Amphenol CONEC 3013W6SAM99A10X	Receptacle Female Sockets	UL94 V-0			Green	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy		2		-55 °C	125 °C	Housing/Shell (Unthreaded)	13	13W6 4 (DC C)	Gold	Free Hanging (In-Line)	7.5 A	250 VDC	20 AWG	Flash
Amphenol CONEC 3013W6SAT99N40X	Receptacle Female Sockets	UL94 V-0	0.283 in	7.2 mm	Green	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Board Lock Mounting Brackets	2	Solder	-55 °C	125 °C	Housing/Shell (4-40)	13	13W6 4 (DC C)	Gold	Through Hole Right Angle	7.5 A	250 VDC
Amphenol CONEC 3013W6SCR76D20X	Receptacle Female Sockets					Combo D-Sub				2	Solder	-55 °C	125 °C	4-40	13	13W6 4 (DC C)	Gold	Panel Mount Through Hole
Amphenol CONEC 3013W6SAR99A10X	Receptacle Female Sockets	UL94 V-0			Green	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy		2	Solder	-55 °C	125 °C	Housing/Shell (Unthreaded)	13	13W6 4 (DC C)	Gold	Through Hole	7.5 A	250 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 67.88

Description

General part information

3013W6S Series

13 (7 + 6 Coax or Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
