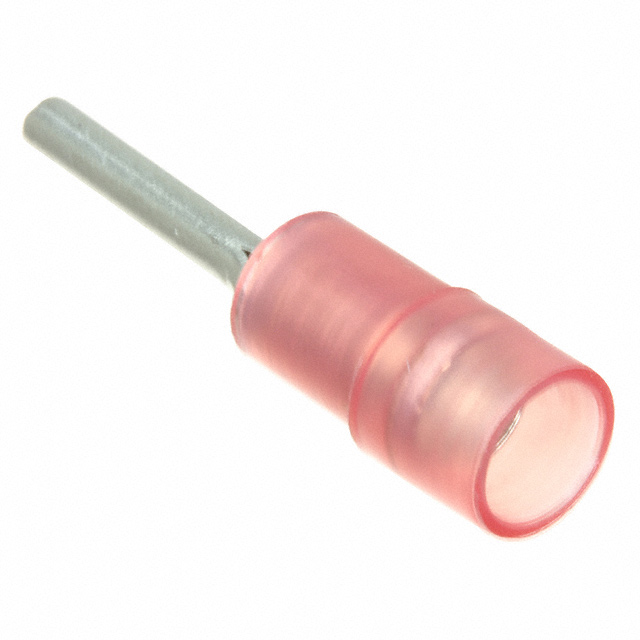

81P-47-NB-A

Active

3M (TC)

22-18 NYLON INSULATED W/INSULATION GRIP PIN TERMINAL

Search across all available documentation for this part.

Active

3M (TC)

22-18 NYLON INSULATED W/INSULATION GRIP PIN TERMINAL

Technical Specifications

Parameters and characteristics for this part

Specification	81P-47-NB-A

Color	Red
Diameter - Barrel ID [diameter]	1.78 mm
Diameter - Barrel ID [diameter]	0.07 in
Insulation	Insulated
Insulation Diameter	3.68 mm
Insulation Diameter [diameter]	0.145 "
Length - Overall [x]	23.37 mm
Length - Overall [x]	0.92 "
Length - Pin [x]	0.47 in
Length - Pin [x]	11.94 mm
Material - Insulation	Nylon, Polyamide (PA)
Pin Diameter [diameter]	0.08 in
Pin Diameter [diameter]	2.03 mm
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

Part	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter	Insulation Diameter [diameter]	Features	Insulation	Length - Pin [x]	Length - Pin [x]	Length - Overall [x]	Length - Overall [x]	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Pin Diameter [diameter]	Pin Diameter [diameter]	Termination	Color	Material - Insulation
3M (TC) 81P-47-P-A	22 AWG	17.5 AWG	3.68 mm	0.145 "	Butted Seam	Insulated	0.47 in	11.94 mm	23.37 mm	0.92 "	1.78 mm	0.07 in	0.08 in	2.03 mm	Crimp	Red	Vinyl
3M (TC) 81P-47-NB-A	22 AWG	17.5 AWG	3.68 mm	0.145 "		Insulated	0.47 in	11.94 mm	23.37 mm	0.92 "	1.78 mm	0.07 in	0.08 in	2.03 mm	Crimp	Red	Nylon Polyamide (PA)
