M80-887 Series

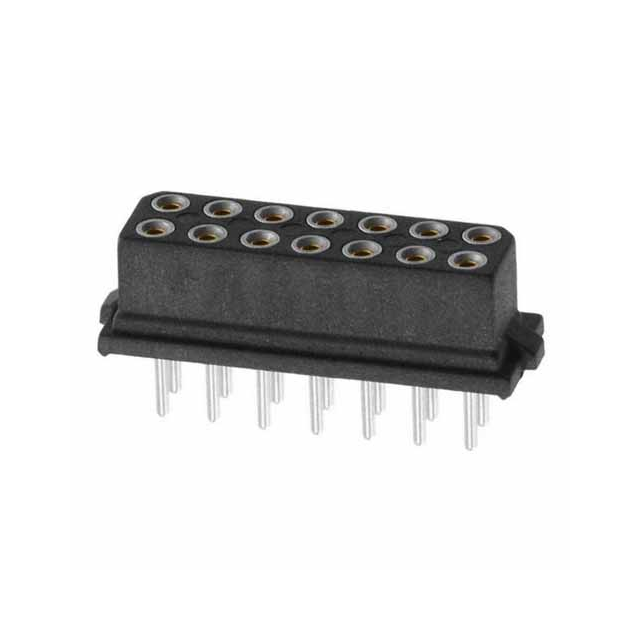

14 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold

Technical Specifications

Parameters and characteristics for this part

SpecificationM80-8871401
ApplicationsGeneral Purpose, Automotive, Military
Connector TypeReceptacle
Contact Finish - MatingGold
Contact Finish - PostTin-Lead
Contact Finish Thickness - Mating12 µin
Contact Finish Thickness - Post137.8 µin
Contact Length - Post0.118 in
Contact MaterialBeryllium Copper
Contact ShapeCircular
Contact TypeFemale Socket
Fastening TypeLocking Ramp
Insulation ColorBlack
Insulation Height0.202 in
Insulation MaterialPolyester, Glass Filled
Mated Stacking Height Options7.85mm, 7.23mm
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions14
Number of Positions LoadedAll
Number of Rows2
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
Pitch - Mating0.079 in
Row Spacing - Mating0.079 in
StyleBoard, Board or Cable
TerminationSolder
Voltage Rating800 V
