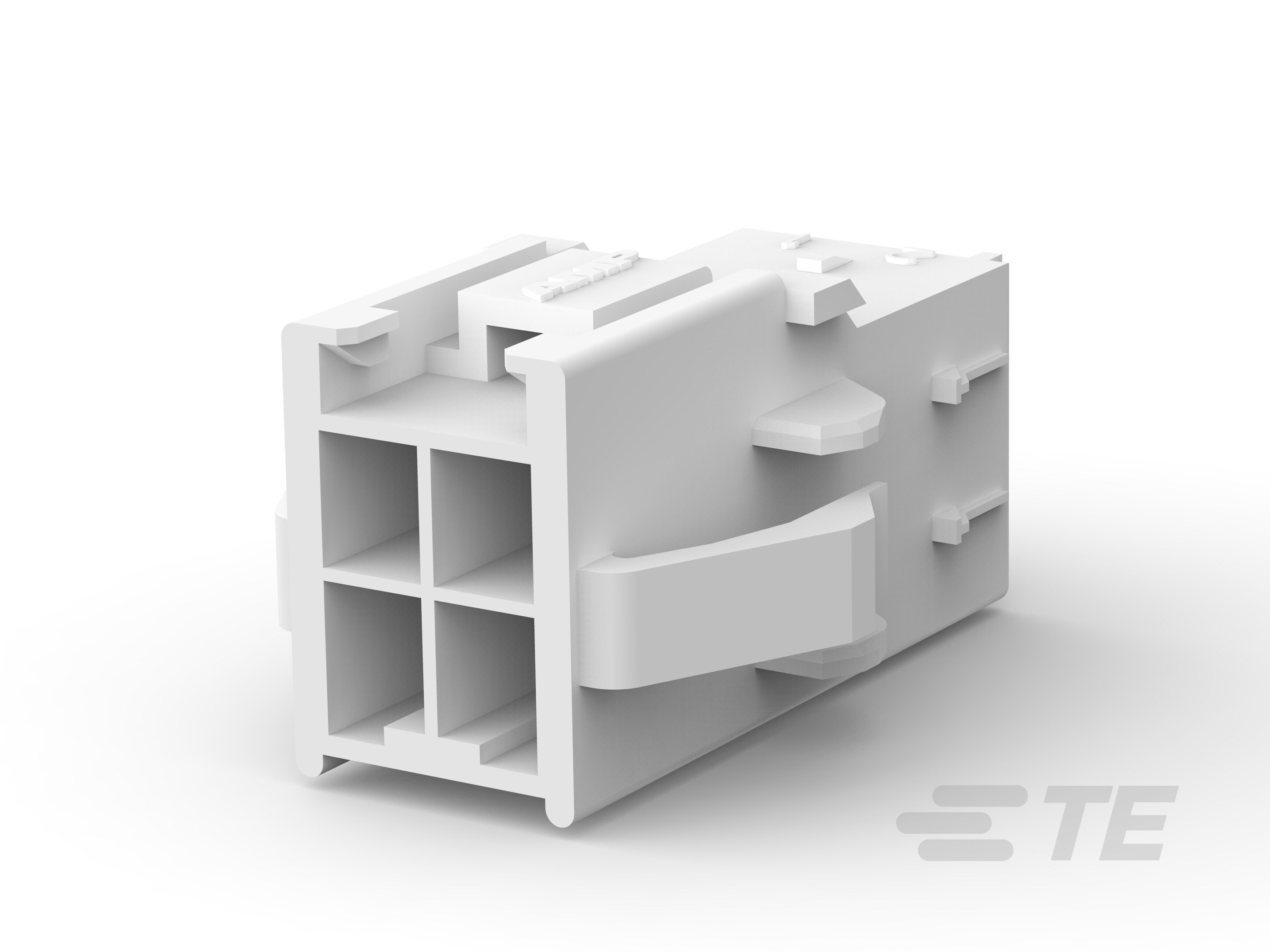

POWER DBL LOCK CAP HSG P/M 4P(GWT)-5-177908-1

177908-1

Active
TE Connectivity AMP Connectors

POWER DBL LOCK CAP HSG P/M 4P ROHS COMPLIANT: YES

Find alt
POWER DBL LOCK CAP HSG P/M 4P(GWT)-5-177908-1

177908-1

Active
TE Connectivity AMP Connectors

POWER DBL LOCK CAP HSG P/M 4P ROHS COMPLIANT: YES

Find alt

Description

General part information

177908 Series

4 Position, Cap, Housing, Crimp, Wire-to-Panel / Wire-to-Wire, UL 94V-0, 3.96 mm [.156 in] Centerline, 2 Row, 300 VAC, Wire & Cable, Power Double Lock

Technical Specifications

Parameters and characteristics for this part

Specification177908-1
ColorNatural
Connector TypeReceptacle
Contact TerminationCrimp
Contact TypeTab
Fastening TypeLatch Holder
Insulation MaterialPolyamide (PA66), Nylon 6/6
Mounting TypePanel Mount, Snap-In
NoteContacts Not Included
Number of Positions4
Number of Rows2
Operating Temperature (Max)105 °C
Operating Temperature (Min)-30 °C
Pitch0.156 in
Row Spacing0.181 in
