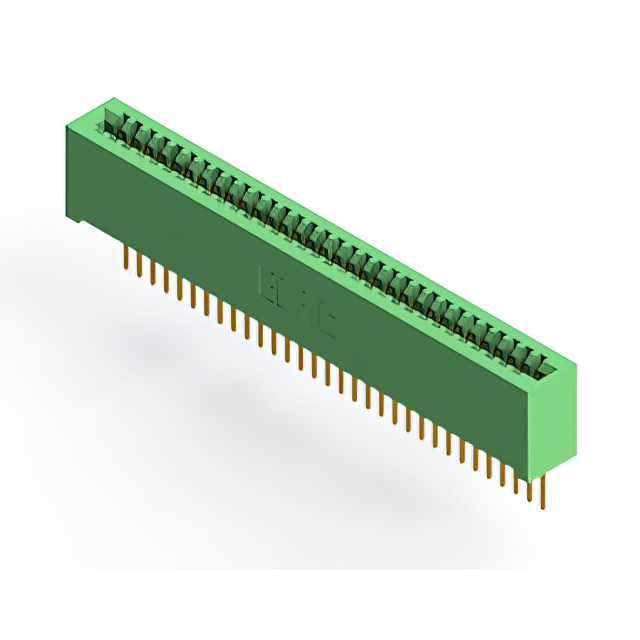

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 32 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
342-032-523-101
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 32 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-032-523-101 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions/Bay/Row [custom] | 32 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
342-032 Series
...
| Part | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Pitch [x] | Pitch [x] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Termination Rows | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Gender | Read Out | Contact Material | Termination | Mounting Type | Contact Type | Flange Feature | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Gold | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 16 | Female | Dual | Copper Alloy | Solder | Through Hole | Cantilever | ||||
EDAC Inc. | 1 | -40 °C | 105 ░C | Non Specified - Single Edge | 2.54 mm | 0.1 in | Gold | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 1 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 32 | Female | Single | Copper Alloy | Solder | Through Hole | Cantilever | ||||
EDAC Inc. | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Gold | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 16 | Female | Dual | Copper Alloy | Solder Eyelet(s) | Through Hole | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Gold | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 16 | Female | Dual | Copper Alloy | Solder | Board Edge Straddle Mount | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Card Extender | ||
EDAC Inc. | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Gold | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 16 | Female | Dual | Copper Alloy | Solder Eyelet(s) | Through Hole | Cantilever | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | |
EDAC Inc. | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Gold | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 16 | Female | Dual | Copper Alloy | Solder | Through Hole | Cantilever | Floating Bobbin Flush Mount | 2.95 mm | 0.116 in | |
EDAC Inc. | 1 | -40 °C | 105 ░C | Non Specified - Single Edge | 2.54 mm | 0.1 in | Gold | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 1 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 32 | Female | Single | Copper Alloy | Wire Wrap | Through Hole | Cantilever | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | |
EDAC Inc. | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Gold | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 16 | Female | Dual | Copper Alloy | Solder | Board Edge Straddle Mount | Cantilever | Flush Mount M3 Threaded Insert Top Opening | Card Extender | ||
EDAC Inc. | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Gold | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 16 | Female | Dual | Copper Alloy | Wire Wrap | Through Hole | Cantilever | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | |
EDAC Inc. | 2 | -40 °C | 105 ░C | Non Specified - Dual Edge | 2.54 mm | 0.1 in | Gold | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 16 | Female | Dual | Copper Alloy | Solder | Through Hole | Cantilever | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
342-032 Series
32 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
