845-051-541-403
ActiveEDAC Inc.

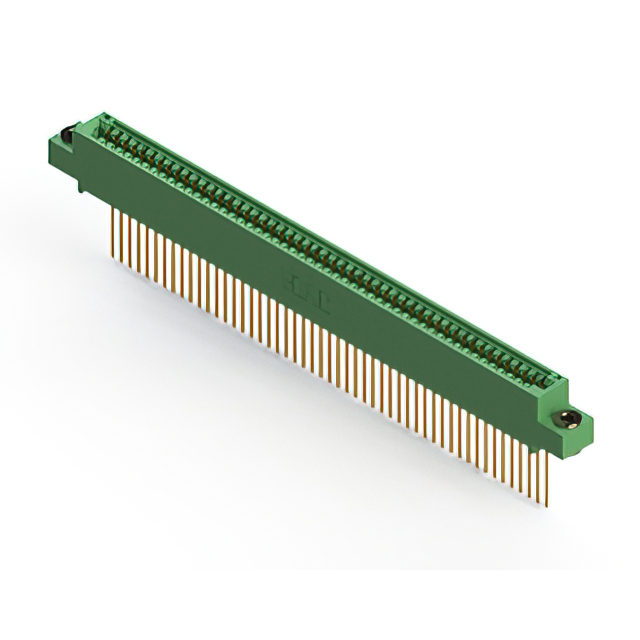

CONN EDGE SINGLE FML 51POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-051-541-403
ActiveEDAC Inc.
CONN EDGE SINGLE FML 51POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-051-541-403 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Floating Bobbin |
| Flange Feature [diameter] | 2.95 mm |
| Flange Feature [diameter] | 0.116 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 51 |
| Number of Positions/Bay/Row [custom] | 51 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
845-051 Series
...
| Part | Number of Rows | Contact Type | Flange Feature | Flange Feature | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Card Type | Gender | Mounting Type | Color | Read Out | Number of Positions/Bay/Row [custom] | Number of Positions | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Termination Rows | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1 | Cantilever | 3.25 mm | 0.128 in | Gold | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Non Specified - Single Edge | Female | Through Hole | Green | Single | 51 | 51 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 125 °C | -40 °C | Copper Alloy | 1 | |||
EDAC Inc. | 1 | Cantilever | Gold | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Non Specified - Single Edge | Female | Through Hole | Green | Single | 51 | 51 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 125 °C | -40 °C | Copper Alloy | 1 | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | ||
EDAC Inc. | 1 | Cantilever | 3.25 mm | 0.128 in | Gold | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Non Specified - Single Edge | Female | Through Hole | Green | Single | 51 | 51 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 125 °C | -40 °C | Copper Alloy | 1 | |||
EDAC Inc. | 1 | Cantilever | Gold | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Non Specified - Single Edge | Female | Through Hole | Green | Single | 51 | 51 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 125 °C | -40 °C | Copper Alloy | 1 | M3 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | 1 | Cantilever | Gold | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Non Specified - Single Edge | Female | Through Hole | Green | Single | 51 | 51 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 125 °C | -40 °C | Copper Alloy | 1 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | ||
EDAC Inc. | 1 | Cantilever | Gold | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Non Specified - Single Edge | Female | Through Hole Right Angle | Green | Single | 51 | 51 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 125 °C | -40 °C | Copper Alloy | 1 | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | ||
EDAC Inc. | 1 | Cantilever | Gold | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Non Specified - Single Edge | Female | Through Hole | Green | Single | 51 | 51 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 125 °C | -40 °C | Copper Alloy | 1 | 4-40 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | 1 | Cantilever | Gold | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Non Specified - Single Edge | Female | Through Hole | Green | Single | 51 | 51 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 125 °C | -40 °C | Copper Alloy | 1 | |||||
EDAC Inc. | 1 | Cantilever | Gold | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Non Specified - Single Edge | Female | Through Hole Right Angle | Green | Single | 51 | 51 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 125 °C | -40 °C | Copper Alloy | 1 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | ||
EDAC Inc. | 1 | Cantilever | Gold | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | Non Specified - Single Edge | Female | Through Hole Right Angle | Green | Single | 51 | 51 | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 125 °C | -40 °C | Copper Alloy | 1 | 4-40 Flush Mount Threaded Insert Top Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 110.80 | |
Description
General part information
845-051 Series
51 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
