MULTIPAIR CABLE, AUDIO CONTROL, SHIELDED, 2 PAIR, 20 AWG, 500 FT, 152.4 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

9402 060U500

Active

Belden Inc.

MULTIPAIR CABLE, AUDIO CONTROL, SHIELDED, 2 PAIR, 20 AWG, 500 FT, 152.4 M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9402 060U500

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	7.62 mm
Jacket (Insulation) Diameter [diameter]	0.3 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.041 mm
Jacket (Insulation) Thickness	0.041 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Wire Gauge	20 AWG

9402 Series

Part	Features	Conductor Insulation	Cable Type	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Usage	Wire Gauge	Shield Coverage	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Shield Type	Jacket (Insulation) Material	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Voltage	Ratings
Belden Inc. 9402 060U500	Drain Wire	Poly-Vinyl Chloride (PVC)	Multi-Pair	Copper Tinned	1.041 mm	0.041 in	Aluminum	Audio Control Instrumentation	20 AWG	100 %	500 '	152.4 m	7.62 mm	0.3 in	-20 C	80 C	4	Foil	Poly-Vinyl Chloride (PVC)	Chrome	28	7
Belden Inc. 9402 0601000	Drain Wire	Poly-Vinyl Chloride (PVC)	Multi-Pair	Copper Tinned	1.041 mm	0.041 in	Aluminum	Audio Control Instrumentation	20 AWG	100 %			7.62 mm	0.3 in	-20 C	80 C	4	Foil	Poly-Vinyl Chloride (PVC)	Chrome	28	7	1000 ft	304.8 m	300 V	UL Style 2937

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2160.88
		2	$ 2052.64
		3	$ 1991.36
		5	$ 1916.25
Newark	Spool of 500	1	$ 2778.81
		5	$ 2671.34
		10	$ 2579.22

Description

General part information

9402 Series

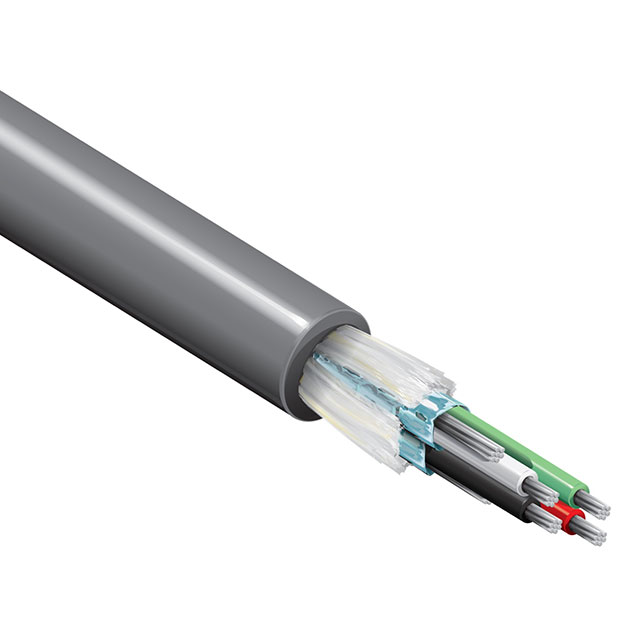

The 9402 060U500 is a 2-pair Shielded Cable with 20AWG stranded tinned copper conductors and semi-rigid PVC insulation. This twisted pair multi-conductor cable comes with a Beldfoil® aluminum foil-polyester tape shield (100% coverage), 20AWG stranded tinned copper drain wire and chrome PVC jacket. Belden multi-conductor cable delivers low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
