OD8025-48HBIP69K

Active

Orion Fans

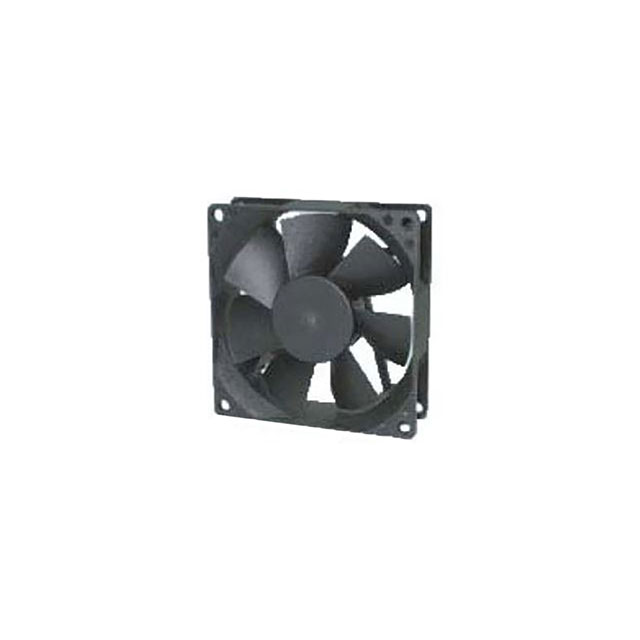

DC AXIAL FAN, 48 V, SQUARE, 80 MM, 25 MM, BALL BEARING, 40 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsOne Page Summary EN Technical Data Sheet EN +1

OD8025-48HBIP69K

Active

Orion Fans

DC AXIAL FAN, 48 V, SQUARE, 80 MM, 25 MM, BALL BEARING, 40 CFM

Deep-Dive with AI

DocumentsOne Page Summary EN Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OD8025-48HBIP69K

Air Flow	40 CFM
Air Flow	1.12 mł/min
Approval Agency	TUV, CE, cURus, UR
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Auto Restart
Ingress Protection	IP69K
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	33 dB(A)
Operating Temperature [Max]	65 °C
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	3.8 W
RPM	3300 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	0.23 in H2O
Static Pressure	57.3 Pa
Termination	2 Wire Leads
Voltage - Rated [custom]	48 VDC
Width [y]	25 mm

OD8025 Series

...

Part	Approval Agency	Static Pressure	Static Pressure	Air Flow	Air Flow	Width [y]	Noise	Features	Lifetime @ Temp.	Size / Dimension [y]	Size / Dimension [x]	Material - Blade	Bearing Type	Termination	Ingress Protection	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Current Rating (Amps)	Fan Type	RPM	Power (Watts)	Weight	Weight	Operating Temperature [Max]	Voltage Range [Max]	Voltage Range [Min]	Voltage - Rated [custom]
Orion Fans OD8025-24HBIP69K	CE cURus TUV UR	0.23 in H2O	57.3 Pa	40 CFM	1.12 mł/min	25 mm	33 dB(A)	Auto Restart	60000 Hrs	80 mm	80 mm	Polybutylene Terephthalate (PBT)	Ball	2 Wire Leads	IP69K	24 VDC	-20 °C	-20 C	65 °C	65 °C	120 mA	Tubeaxial	3300 RPM	2.9 W
Orion Fans OD8025-12HBIP69K	CE cURus TUV UR	0.23 in H2O	57.3 Pa	40 CFM	1.12 mł/min	25 mm	33 dB(A)	Auto Restart	60000 Hrs	80 mm	80 mm	Polybutylene Terephthalate (PBT)	Ball	2 Wire Leads	IP69K	12 VDC	-20 °C	-20 C	65 °C	65 °C	0.18 A	Tubeaxial	3300 RPM	2.2 W
Orion Fans OD8025-12HHS01A	cURus TUV	0.19 in H2O	47.3 Pa	44 CFM	1.23 m³/min	25 mm	40 dB(A)	Auto Restart Speed Sensor (Tach)	30000 Hrs	80 mm	80 mm	Polybutylene Terephthalate (PBT)	Sleeve	3 Wire Leads		12 VDC	-20 °C	-20 C		75 ░C	0.23 A	Tubeaxial	3400 RPM	2.16 W	86.64 g	0.191 lb	75 °C
Orion Fans OD8025-12LSS	cURus TUV	0.07 in H2O	17.4 Pa	26 CFM	0.728 m³/min	25 mm	23 dB(A)	Auto Restart	50000 Hrs	80 mm	80 mm	Polybutylene Terephthalate (PBT)	Sealed Sleeve	2 Wire Leads		12 VDC	-10 °C	-10 °C	70 °C	70 °C	0.09 A	Tubeaxial	2100 RPM	600 mW	86.64 g	0.191 lb
Orion Fans OD8025-24HBIP68	cURus TUV	0.23 in H2O	57.3 Pa	40 CFM	1.12 mł/min	25 mm	33 dB(A)	Auto Restart	65000 Hrs	80 mm	80 mm	Polybutylene Terephthalate (PBT)	Ball	2 Wire Leads	IP68 - Dust Tight Waterproof	24 VDC	-15 °C	-15 °C	65 °C	65 °C	120 mA	Tubeaxial	3300 RPM	2.9 W	86.64 g	0.191 lb
Orion Fans OD8025-05LB	CE cURus TUV UR	0.1 in H2O	24.9 Pa	29 CFM	0.812 mł/min	25 mm	21 dB(A)	Auto Restart	60000 Hrs	80 mm	80 mm	Polybutylene Terephthalate (PBT)	Ball	2 Wire Leads		5 V	-20 °C	-20 C	65 °C	65 °C	0.2 A	Tubeaxial	1800 RPM		86.64 g	0.191 lb		7 V	4 VDC
Orion Fans OD8025-48HS01A		0.23 in H2O	57.3 Pa	40 CFM	1.12 mł/min	25 mm	33 dB(A)	Speed Sensor (Tach)	30000 Hrs	80 mm	80 mm	Polybutylene Terephthalate (PBT)	Sleeve	3 Wire Leads			-20 °C	-20 C		75 ░C		Tubeaxial	3300 RPM	3.8 W	86.64 g	0.191 lb	75 °C	56 VDC	24 VDC	48 VDC
Orion Fans OD8025-12LLB10A	cURus TUV	0.07 in H2O	17.4 Pa	19 CFM	0.532 m³/min	25 mm	19 dB(A)	Auto Restart PWM Control Speed Sensor (Tach)	65000 Hrs	80 mm	80 mm	Polybutylene Terephthalate (PBT)	Ball	4 Wire Leads		12 VDC	-20 °C	-20 C		75 ░C	40 mA	Tubeaxial	1600 RPM	490 mW	86.64 g	0.191 lb	75 °C
Orion Fans OD8025-48HBIP69K	CE cURus TUV UR	0.23 in H2O	57.3 Pa	40 CFM	1.12 mł/min	25 mm	33 dB(A)	Auto Restart	60000 Hrs	80 mm	80 mm	Polybutylene Terephthalate (PBT)	Ball	2 Wire Leads	IP69K		-20 °C	-20 C	65 °C	65 °C		Tubeaxial	3300 RPM	3.8 W						48 VDC
Orion Fans OD8025-12HS	cURus TUV			40 CFM	1.12 mł/min	25 mm	35 dB	Auto Restart	30000 Hrs	80 mm	80 mm	Polybutylene Terephthalate (PBT)	Sleeve	2 Wire Leads		12 VDC	-20 °C	-20 C		75 ░C	0.18 A	Tubeaxial	3100 RPM	1.8 W	86.64 g	0.191 lb	75 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 21.49
		10	$ 19.63
		25	$ 18.88
		50	$ 17.64
		100	$ 16.27
		250	$ 16.03
		500	$ 15.90

Description

General part information

OD8025 Series

Fan Tubeaxial 48VDC Square - 80mm L x 80mm H Ball 40.0 CFM (1.12m³/min) 2 Wire Leads
