KC26A30.001NLS

Active

E-Switch

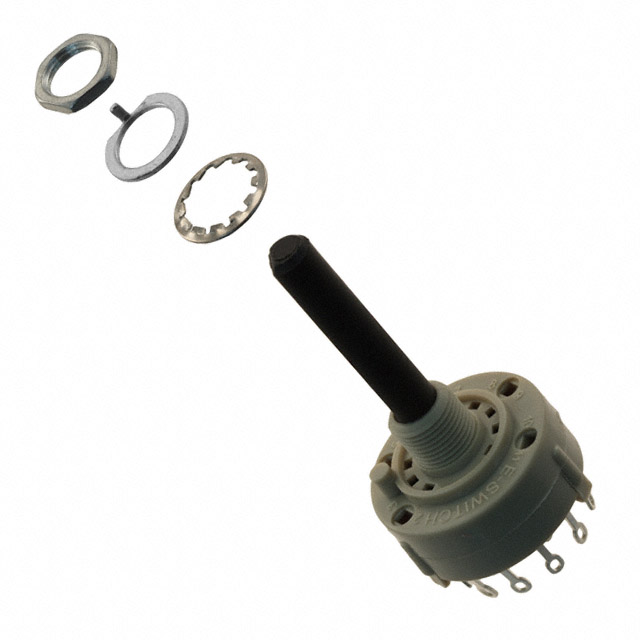

SWITCH ROTARY 6POS 350MA 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROTARY 6POS 350MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	KC26A30.001NLS

Actuator Length [x]	30 mm
Actuator Type	Flatted
Actuator Type [diameter]	6.35 mm
Angle of Throw	30 °
Circuit per Deck [custom]	DP6T
Contact Finish	Silver
Contact Material	Copper Alloy
Contact Timing	Non-Shorting
Current Rating (Amps)	350 mA
Depth Behind Panel [z]	18.5 mm
Index Stops	Fixed
Number of Decks [custom]	1
Number of Poles per Deck	2
Number of Positions	6
Panel Cutout Dimensions [diameter]	9.8 mm
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Contact Timing	Contact Finish	Panel Cutout Dimensions [diameter]	Circuit per Deck [custom]	Actuator Type [diameter]	Actuator Type	Angle of Throw	Number of Positions	Termination Style	Contact Material	Actuator Length [x]	Number of Decks [custom]	Number of Poles per Deck	Index Stops	Depth Behind Panel [z]	Voltage Rating - AC	Current Rating (Amps)	Mounting Type	Depth Behind Panel
E-Switch KC26A30.001NLS	Non-Shorting	Silver	9.8 mm	DP6T	6.35 mm	Flatted	30 °	6	Solder Lug	Copper Alloy	30 mm	1	2	Fixed	18.5 mm	125 V	350 mA
E-Switch KC26A30.001SPS	Shorting	Silver	9.8 mm	DP6T	6.35 mm	Flatted	30 °	6	PC Pin	Copper Alloy	30 mm	1	2	Fixed		125 V	350 mA	Panel Mount Through Hole	14.2 mm
E-Switch KC26A30.001SLS	Shorting	Silver	9.8 mm	DP6T	6.35 mm	Flatted	30 °	6	Solder Lug	Copper Alloy	30 mm	1	2	Fixed	18.5 mm	125 V	350 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switch 6 Position DP6T 350mA (AC) 125 VAC Panel Mount
