TL9320AF400QG

Active

E-Switch

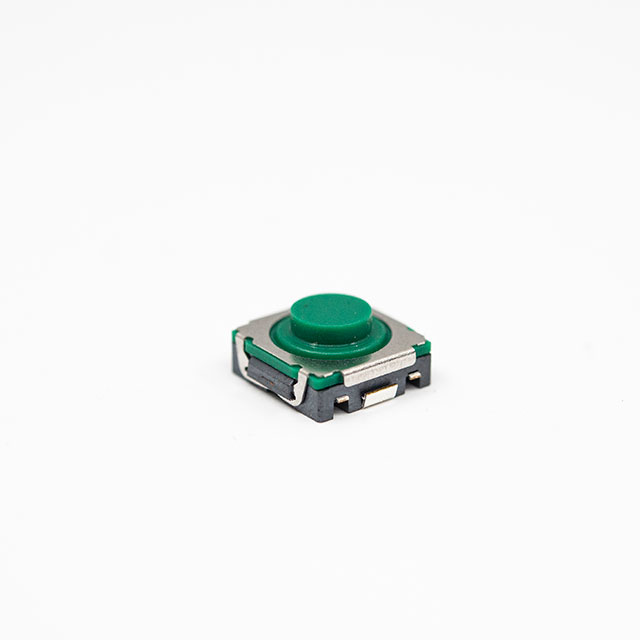

TACTILE SWITCH, GULL WING, TOP ACTUATED, SURFACE MOUNT, ROUND BUTTON, 400 GF, 50MA AT 16VDC

Search across all available documentation for this part.

Active

E-Switch

TACTILE SWITCH, GULL WING, TOP ACTUATED, SURFACE MOUNT, ROUND BUTTON, 400 GF, 50MA AT 16VDC

Technical Specifications

Parameters and characteristics for this part

Specification	TL9320AF400QG

Actuator Height off PCB, Vertical [z]	3.95 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 16 VDC
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	500000 Cycles
Mounting Type	Surface Mount
Operating Force	400 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	8.4 mm
Outline [y]	8.4 mm
Switch Function	Off-Mom
Termination Style	Gull Wing

TACTILE SWITCH, GULL WING, TOP ACTUATED, SURFACE MOUNT, ROUND BUTTON, 400 GF, 50MA AT 16VDC

Part	Contact Rating @ Voltage	Operating Force	Termination Style	Outline [y]	Outline [x]	Actuator Orientation	Mechanical Life	Actuator Height off PCB, Vertical [z]	Circuit	Ingress Protection	Illumination	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Switch Function
E-Switch TL9320AF400QG	0.05 A, 16 VDC	400 gf	Gull Wing	8.4 mm	8.4 mm	Top Actuated	500000 Cycles	3.95 mm	SPST-NO	IP67 - Dust Tight, Waterproof	Non-Illuminated	Standard	-20 C	70 °C	Surface Mount	Off-Mom
