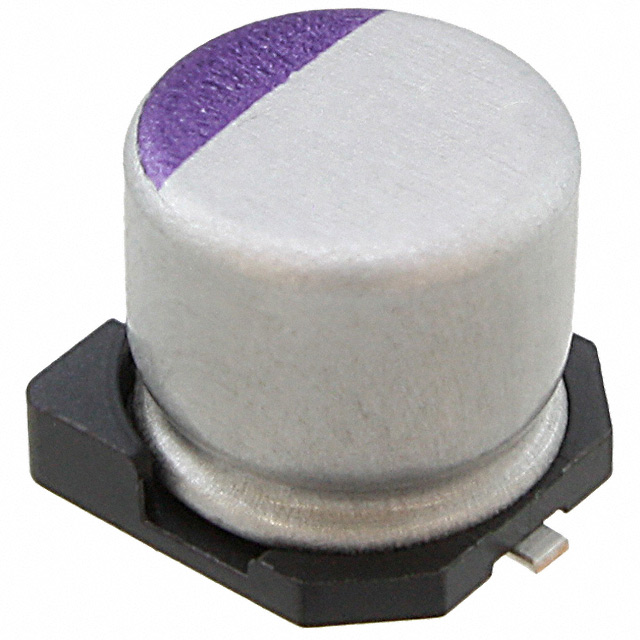

50SVPF18M

Active

Panasonic Industrial Automation Sales

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 18 ΜF, 50 V, RADIAL CAN - SMD, 0.035 OHM

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 18 ΜF, 50 V, RADIAL CAN - SMD, 0.035 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	50SVPF18M

Applications	General Purpose
Capacitance	18 µF
ESR (Equivalent Series Resistance)	35 mOhms
Height - Seated (Max) [Max]	7 mm
Height - Seated (Max) [Max]	0.276 "
Lifetime @ Temp.	5000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can - SMD
Ripple Current @ High Frequency	2.7 A
Ripple Current @ Low Frequency	135 mA
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Surface Mount Land Size [x]	0.327 "
Surface Mount Land Size [x]	8.3 mm
Surface Mount Land Size [y]	8.3 mm
Surface Mount Land Size [y]	0.327 in
Tolerance	20 %
Type	Polymer
Voltage - Rated	50 VDC

Part	Voltage - Rated	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Tolerance	Ripple Current @ High Frequency	Mounting Type	Lifetime @ Temp.	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Type	ESR (Equivalent Series Resistance)	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales 50SVPF39M	50 VDC	General Purpose	105 ░C	-55 °C	0.327 "	8.3 mm	0.327 in	8.3 mm	20 %	3.8 A	Surface Mount	5000 Hrs	39 µF	0.315 "	8 mm	12 mm	0.472 "	Radial Can - SMD	Polymer	25 mOhm	190 mA
Panasonic Industrial Automation Sales 50SVPF18M	50 VDC	General Purpose	105 ░C	-55 °C	0.327 "	8.3 mm	0.327 in	8.3 mm	20 %	2.7 A	Surface Mount	5000 Hrs	18 µF	0.315 "	8 mm			Radial Can - SMD	Polymer	35 mOhms	135 mA	7 mm	0.276 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 18 ΜF, 50 V, RADIAL CAN - SMD, 0.035 OHM
