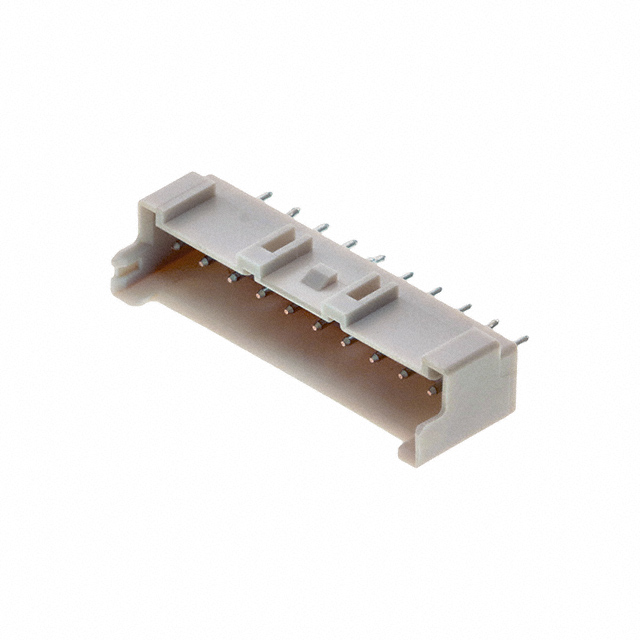

Specification	B10B-XASK-1

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Post	0.134 in
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.346 in
Insulation Material	Nylon 6/6, Polyamide (PA66), Glass Filled
Mated Stacking Height	11.3 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Press-Fit, Solder
Voltage Rating	250 V

B10B-XAS Series

Part	Number of Positions Loaded	Termination	Style	Material Flammability Rating	Features	Contact Finish - Post	Number of Rows	Mounting Type	Voltage Rating	Shrouding	Connector Type	Current Rating	Contact Finish - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Contact Shape	Insulation Material	Fastening Type	Insulation Height	Contact Material	Pitch - Mating	Insulation Color	Contact Type	Contact Length - Post	Number of Positions	Mated Stacking Height
JST Sales America Inc. B10B-XASK-1N-A(LF)(SN)	All	Press-Fit Solder	Board Cable/Wire	UL94 V-0	Board Guide	Tin	1	Through Hole	250 V	Shrouded - 4 Wall	Header	3 A	Tin	85 °C	-25 °C	Circular	Glass Filled Nylon 6/6 Polyamide (PA66)	Locking Ramp	0.346 in	Copper Alloy	0.098 in	Natural	Male Pin	0.134 in	10
JST Sales America Inc. B10B-XASK-1	All	Press-Fit Solder	Board Cable/Wire	UL94 V-0		Tin	1	Through Hole	250 V	Shrouded - 4 Wall	Header	3 A	Tin	85 °C	-25 °C	Circular	Glass Filled Nylon 6/6 Polyamide (PA66)	Locking Ramp	0.346 in	Copper Alloy	0.098 in	Natural	Male Pin	0.134 in	10	11.3 mm
JST Sales America Inc. B10B-XASK-1-A(LF)(SN)	All	Press-Fit Solder	Board Cable/Wire	UL94 V-0	Board Guide	Tin	1	Through Hole	250 V	Shrouded - 4 Wall	Header	3 A	Tin	85 °C	-25 °C	Circular	Glass Filled Nylon 6/6 Polyamide (PA66)	Locking Ramp	0.346 in	Copper Alloy	0.098 in	Natural	Male Pin	0.118 in	10	11.3 mm
