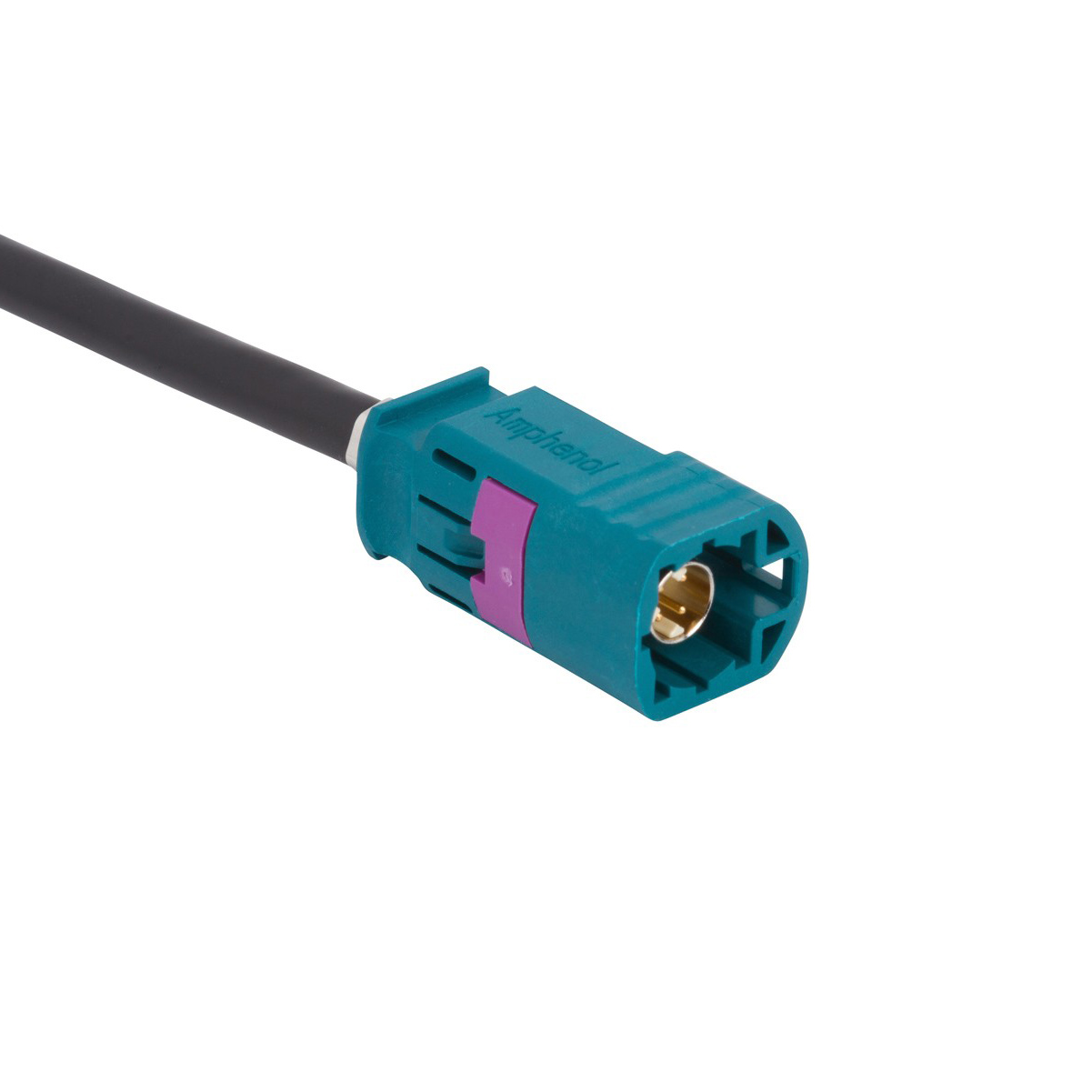

HSDSPZSPZ21-20

Active

AMPHENOL RF

CBL CIRC 4POS MALE TO MALE 75'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HSDSPZSPZ21-20

Active

AMPHENOL RF

CBL CIRC 4POS MALE TO MALE 75'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	25	$ 118.56

Description

General part information

HSDSPZSPZ Series

Circular Cable Assembly Unshielded 75.0' (22.9m)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HSDSPZSPZ21-20	HSDSPZSPZ Series

1st Connector Gender	Male Pins	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Connector Number of Positions	4	4
1st Connector Number of Positions Loaded	All	All
1st Connector Orientation	Z	Z
1st Connector Type	Plug	Plug
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Connector Number of Positions	4	4
2nd Connector Number of Positions Loaded	All	All
2nd Connector Orientation	Z	Z
2nd Connector Type	Plug	Plug
Assembly Configuration	Standard	Standard
Cable Type	Round	Round
Color	Black	Black
Length	22.86 m	1 - 50 ft
Length	22.9 m	1.83 - 304.8 m
Length	-	1 - 500 m
Length	-	1.64 - 100 ft
Shielding	Unshielded	Unshielded

HSDSPZSPZ Series

CBL CIRC 4POS MALE TO MALE 3.28'

Part	1st Connector Number of Positions Loaded	1st Connector Orientation	Color	2nd Connector Mounting Type	Cable Type	2nd Connector Number of Positions	2nd Connector Orientation	2nd Connector Type	2nd Connector Number of Positions Loaded	1st Connector Type	Shielding	Length [x]	Length [x]	Assembly Configuration	1st Connector Mounting Type	1st Connector Gender	1st Connector Number of Positions	Length	Length
AMPHENOL RF HSDSPZSPZ06-20	All	Z	Black	Free Hanging (In-Line)	Round	4	Z	Plug	All	Plug	Unshielded	1 m	3.28 ft	Standard	Free Hanging (In-Line)	Male Pins	4
AMPHENOL RF HSDSPZSPZ14-21	All	Z	Black	Free Hanging (In-Line)	Round	4	Z	Plug	All	Plug	Unshielded			Standard	Free Hanging (In-Line)	Male Pins	4	3.66 m	12 ft
AMPHENOL RF HSDSPZSPZ22-20	All	Z	Black	Free Hanging (In-Line)	Round	4	Z	Plug	All	Plug	Unshielded	30 m	98.4 ft	Standard	Free Hanging (In-Line)	Male Pins	4
AMPHENOL RF HSDSPZSPZ02-20	All	Z	Black	Free Hanging (In-Line)	Round	4	Z	Plug	All	Plug	Unshielded	500 mm	1.64 ft	Standard	Free Hanging (In-Line)	Male Pins	4
AMPHENOL RF HSDSPZSPZ23-20	All	Z	Black	Free Hanging (In-Line)	Round	4	Z	Plug	All	Plug	Unshielded	30.5 m	100 ft	Standard	Free Hanging (In-Line)	Male Pins	4
AMPHENOL RF HSDSPZSPZ19-20	All	Z	Black	Free Hanging (In-Line)	Round	4	Z	Plug	All	Plug	Unshielded			Standard	Free Hanging (In-Line)	Male Pins	4	15.24 m	50 ft
AMPHENOL RF HSDSPZSPZ21-20	All	Z	Black	Free Hanging (In-Line)	Round	4	Z	Plug	All	Plug	Unshielded			Standard	Free Hanging (In-Line)	Male Pins	4	22.9 m	22.86 m
AMPHENOL RF HSDSPZSPZ01-21	All	Z	Black	Free Hanging (In-Line)	Round	4	Z	Plug	All	Plug	Unshielded			Standard	Free Hanging (In-Line)	Male Pins	4	304.8 mm	1 ft
AMPHENOL RF HSDSPZSPZ15-20	All	Z	Black	Free Hanging (In-Line)	Round	4	Z	Plug	All	Plug	Unshielded	4.57 m	15 ft	Standard	Free Hanging (In-Line)	Male Pins	4
AMPHENOL RF HSDSPZSPZ10-21	All	Z	Black	Free Hanging (In-Line)	Round	4	Z	Plug	All	Plug	Unshielded			Standard	Free Hanging (In-Line)	Male Pins	4	1.83 m	6 ft
