4509-256-SS
ActiveRAF Electronic Hardware

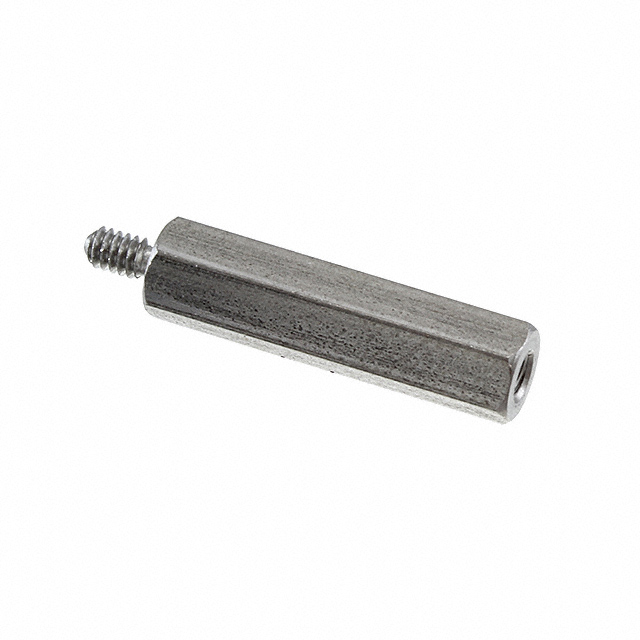

HEX STANDOFF #2-56 SS 3/4"
4509-256-SS
ActiveRAF Electronic Hardware
HEX STANDOFF #2-56 SS 3/4"
Description
General part information
4509-256 Series
Hex Standoff Threaded #2-56 Stainless Steel 0.750" (19.05mm) 3/4"
Technical Specifications
Parameters and characteristics for this part
| Specification | 4509-256-SS |
|---|---|
| Between Board Height | 0.75 in |
| Diameter - Outside | 0.188 in |
| Diameter - Outside (Measured) | 0.188 in |
| Diameter - Outside (Nominal) | 0.1875 in |
| Diameter - Outside Shape | Hex |
| Gender | Female, Male |
| Length - Overall | 0.906 in |
| Material | Stainless Steel |
| Screw Thread Size | #2-56 |
| Thread Type | Hex |
| Threaded/Unthreaded | Threaded |
| Type | Hex Standoff |
