125-2701-811

Active

Cinch Connectivity Solutions Johnson

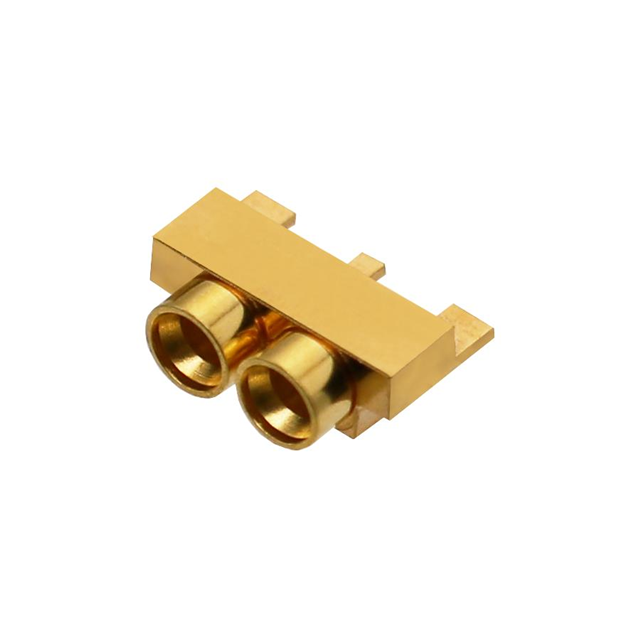

SMPM MALE SMOOTH BORE 2-PORT PCB

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

SMPM MALE SMOOTH BORE 2-PORT PCB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMPM Connector Plug, Male Pin 50 Ohms Board Edge, Cutout; Surface Mount Solder

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	125-2701-811	125-2701 Series

Body Finish	Gold	Gold
Body Material	Brass, Beryllium Copper	Brass, Beryllium Copper
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	SMPM	SMPM
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On	Snap-On
Features	Smooth Bore	Smooth Bore
Frequency - Max [Max]	65 GHz	26.5 - 65 GHz
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Type	Cutout, Board Edge, Surface Mount	Cutout, Board Edge, Surface Mount
Number of Ports	2	1 - 4
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Solder	Solder
Voltage Rating	325 V	325 V

SMPM MALE SMOOTH BORE 2-PORT PCB

Part	Connector Style	Voltage Rating	Contact Termination	Features	Connector Type	Body Material	Shield Termination	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Mating Cycles	Number of Ports	Fastening Type	Frequency - Max [Max]	Center Contact Material	Center Contact Plating	Housing Color	Impedance	Dielectric Material
Cinch Connectivity Solutions Johnson 125-2701-811	SMPM	325 V	Solder	Smooth Bore	Male Pin, Plug	Beryllium Copper, Brass	Solder	Gold	-65 ░C	165 °C	Board Edge, Cutout, Surface Mount	500	2	Snap-On	65 GHz	Beryllium Copper	Gold	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)
Cinch Connectivity Solutions Johnson 125-2701-221	SMPM	325 V	Solder	Smooth Bore	Male Pin, Plug	Beryllium Copper	Solder	Gold	-65 ░C	165 °C	Surface Mount	500	1	Snap-On	26.5 GHz	Beryllium Copper	Gold	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)
Cinch Connectivity Solutions Johnson 125-2701-821	SMPM	325 V	Solder	Smooth Bore	Male Pin, Plug	Beryllium Copper, Brass	Solder	Gold	-65 ░C	165 °C	Board Edge, Cutout, Surface Mount	500	4	Snap-On	65 GHz	Beryllium Copper	Gold	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)
