TA3FS15

Active

Switchcraft Inc.

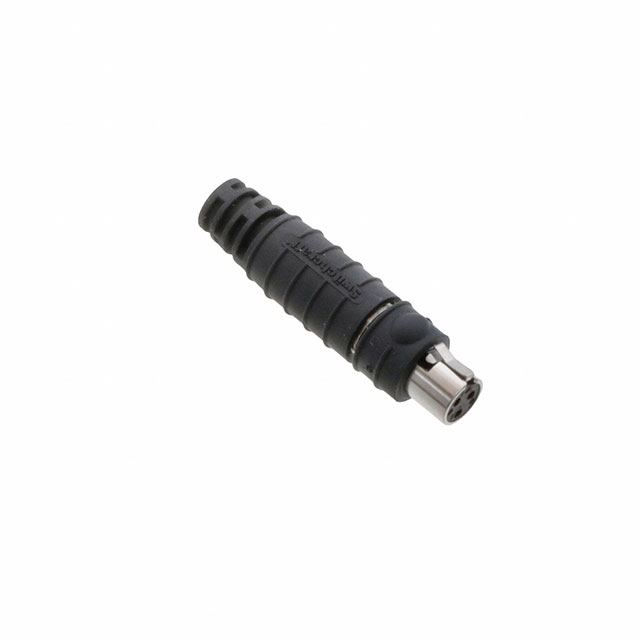

CONN PLUG FMALE MINI XLR 3P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE MINI XLR 3P SLDR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TA3FS15	TA3FS Series

Applications	Audio, Medical	Audio, Medical
Backshell Material, Plating	Thermoplastic, Thermoplastic Rubber	Thermoplastic, Thermoplastic Rubber, Copper Alloy, Nickel
Cable Opening	-	3.05 mm
Cable Opening	-	7.37 mm
Cable Opening	-	0.29 in
Cable Opening [Max] [diameter]	4.06 mm	4.06 mm
Cable Opening [Max] [diameter]	0.16 in	0.12 - 0.16 in
Cable Opening [Min] [diameter]	0.14 in	0.1 - 0.14 in
Cable Opening [Min] [diameter]	3.56 mm	2.54 - 3.56 mm
Color	Black, Silver	Black, Silver
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Silver	Silver
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	5 A	5 A
Fastening Type	Latch Lock	Latch Lock
Features	Backshell, Strain Relief, Cable Clamp	Backshell, Strain Relief, Cable Clamp, Ground
Ingress Protection	IP66, IP65	IP66, IP65
Insert Material	Thermoplastic	Thermoplastic
Material Flammability Rating	-	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature	-	85 °C
Operating Temperature	-	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Copper Alloy	Copper Alloy
Shell Size - Insert	Mini XLR	Mini XLR
Shielding	-	Shielded
Termination	-	Solder
Voltage Rating	125 VAC	125 VAC

CONN PLUG FMALE MINI XLR 3P SLDR

Part	Current Rating (Amps)	Primary Material	Ingress Protection	Voltage Rating	Insert Material	Shell Material	Color	Contact Finish - Mating	Applications	Shell Size - Insert	Features	Connector Type	Backshell Material, Plating	Fastening Type	Orientation	Shell Finish	Contact Material	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Mounting Type	Cable Opening [custom]	Cable Opening [custom]	Material Flammability Rating	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Cable Opening [Max] [diameter]
Switchcraft Inc. TA3FS11	5 A	Metal	IP65, IP66	125 VAC	Thermoplastic	Copper Alloy	Black, Silver	Silver	Audio, Medical	Mini XLR	Backshell, Cable Clamp, Strain Relief	Female Sockets, Plug	Thermoplastic, Thermoplastic Rubber	Latch Lock	Keyed	Nickel	Copper Alloy	3.05 mm	0.12 in	2.54 mm	0.1 in	Free Hanging (In-Line)
Switchcraft Inc. TA3FSH	5 A	Metal		125 VAC	Thermoplastic	Copper Alloy	Silver	Silver	Audio, Medical	Mini XLR	Backshell, Cable Clamp, Ground	Female Sockets, Plug	Copper Alloy, Nickel	Latch Lock	Keyed	Nickel	Copper Alloy					Free Hanging (In-Line)	7.37 mm	0.29 in	UL94 V-0	Solder	85 °C	-55 °C	Shielded
Switchcraft Inc. TA3FS15	5 A	Metal	IP65, IP66	125 VAC	Thermoplastic	Copper Alloy	Black, Silver	Silver	Audio, Medical	Mini XLR	Backshell, Cable Clamp, Strain Relief	Female Sockets, Plug	Thermoplastic, Thermoplastic Rubber	Latch Lock	Keyed	Nickel	Copper Alloy		0.16 in	3.56 mm	0.14 in	Free Hanging (In-Line)								4.06 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 15.21

General part information

3 Position Circular Connector Plug, Female Sockets Solder Cup

Technical documentation and resources
